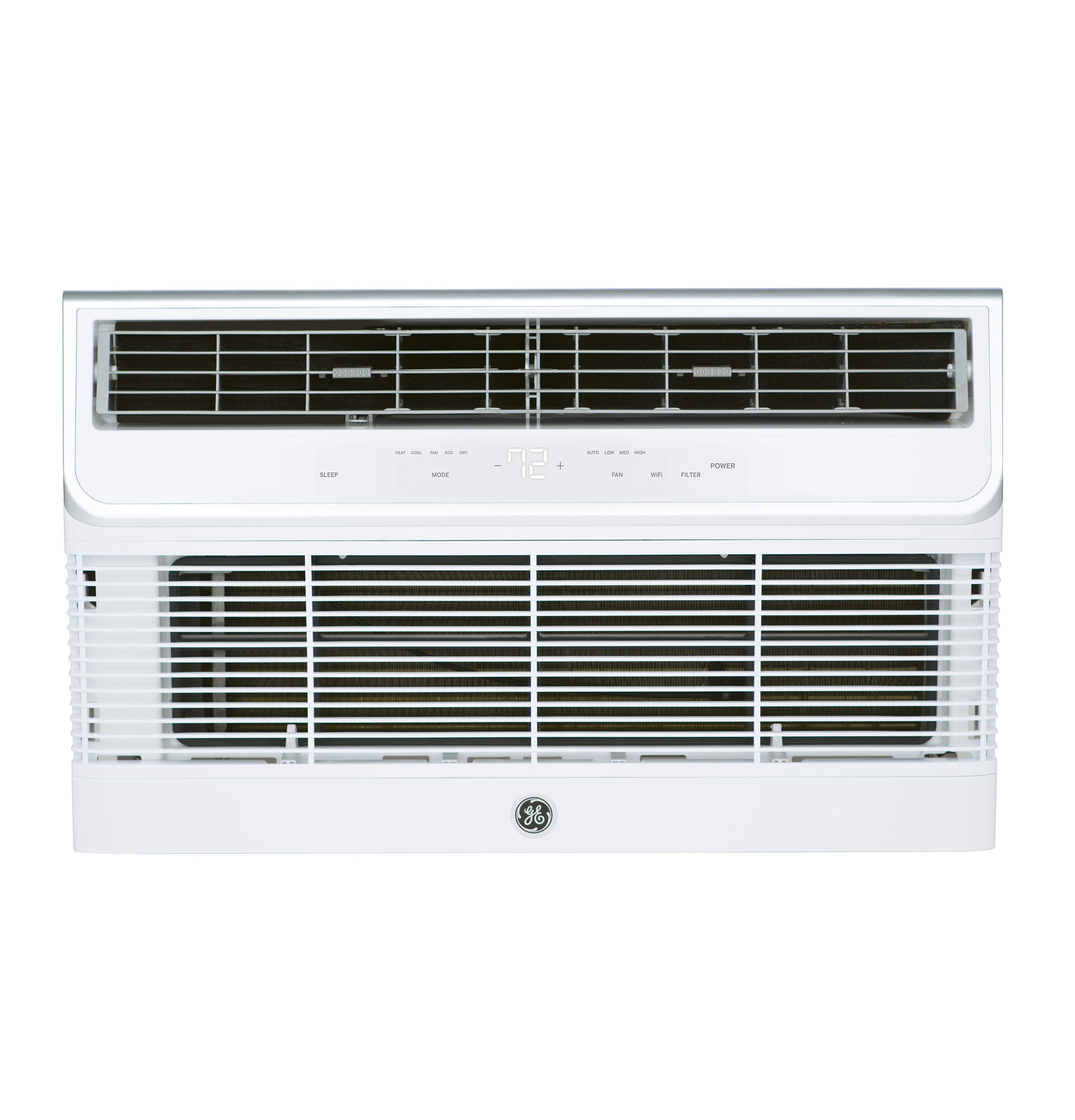

GE® 230/208 Volt Built-In Heat/Cool Room Air Conditioner
Additional information
| Dimensions | 21.8125 × 26 × 15.625 in |
|---|---|
| Brand | GE |
| Refrigerant | R32 |
| Voltage | 230-208/60/1 |
| Claims & Certifications | ADA Compliant, AHAM, CUL, UL, EEV, California Prop 65 |
| Louver Style | 6-Way |
| Product Type | Built-In |
| Hertz | 60 |
| Air Discharge | Over / Under |
| Style | Thru-Wall |
| Min./Max. Window Opening Width (in.) | 26.125 in |
| Depth to Louvers | 5 |
| Chassis Type | Slide-In |
| Connected Capabilities | Amazon Alexa, Google Home |
| Filter Type | Rigid Frame, Tilt-Out, Washable |
| WiFi Connect | Built-In |
| Minimum Window Opening Height (in.) | 15.75 in |
| Remote Control | Yes |
| Temperature Range | 60->85 F |
| Control Type | Electronic |
| Cord Length | 68" |
| Overall Depth (Excludes Sleeve) | 19.90625 |
| Rotary Compressor | Yes |
| Wall Case | RAB46/47/48/26 Required At Additional Cost |
| Outdoor Vent / Exhaust | Yes |
| CEER | 9.3/9.5 |
| Heating - Electric - BTUH - AHAM - 1R | 10600/8600 |
| Overall Width (Excludes Sleeve) | 24.8125 |
| Room Air Conditioner Features | Batteries Included, Improved Corrosion Package, Remote Control, Smart Fan Switch |
| Cutout Height (in) | 15.75 in |
| Cooling BTUH (MIN) | 13600 |
| Heating - Electric - Heater Amps | 15.0/13.5 |
| Voltage (MAX) | 230.000000 |
| Color Appearance | Soft Gray |
| Cooling BTUH (MAX) | 14000.000000 |
| Fan Speed Selections | 3 Cooling, 3 Fan Only |
| Optional Grill | RAG13/RAG13A/RAG14E |
| Refrigerant Type | R32 |
| Overall Height (Excludes Sleeve) | 14.875 |
| Plug Type | Perpendicular/Right Angle LCDI |
| Heating - Electric - Input Watts | 3450/2821 |
| Installation | Wall Mounted |
| Cutout Width (in) | 26.125 in |
| Thermostat Type | Electronic Digital |
| Voltage/Hertz/Phase | 230-208/60/1 |
| Voltage (MIN) | 208 |
| Unit Type | Heat / Cool Unit |
Description
Features
Built-in Wifi Powered By Smarthq™
True Built In Design
The ultimate fit & finish for more usable space and the best in built-in installation. Sleeve and chassis are perfectly integrated, creating a seamless fit without leaks or gaps
Premium Guard Seacoast Protection
Premium Seacoast Protection on heat/cool models has special coatings and double coats of paint on key components including coils, base pan, compressor and stainless screws
Premium Finish
Bright, clean color & a decorative metallic silver accent encasing the air discharge louver, provide an overall sleek appearance
Electronic Cap Touch Controls
Controls offer a high-end and smooth to-the-touch panel
Large Lcd Auto-dimming Display
Intuitive & large white LCD display can be easily seen from anywhere in the room. Convenient Auto-Dimming feature provides ambient lighting during the night
Slim Room Front
A slim room front provides more usable space in the room. It’s the sleekest design in the industry
Eco Mode
Innovative mode where the fan cycles off during cooling intervals, creating energy savings while keeping the room comfortable
Dry Mode
Designed for humid environments, it helps provide a dryer & more comfortable atmosphere with room-air dehumidification
Auto Mode
Automatically select heating or cooling mode and fan speed to maintain the current temperature setpoint. It monitors the room temperature for optimal comfort
3-speed Fan
Select High, Medium, Low or Auto Setting to achieve the best in air comfort & ultimate flexibility. Available on heat-cool models
6-way Directional Airflow
Direct where the air flows with up to 6 directional vents—cooling and/or heating the areas of the room that need it the most
Washable Filter
Easy to remove and rinse clean, the filter helps remove dust and other particles from transmitting in the air—providing a cleaner environment
Remote Control Included
Slim, intuitive and easy to use, the remote control enables adjusting temperatures and settings conveniently from anywhere in the room
Quiet Performance
Designed & engineered by GE Appliances for ultra-quiet comfort
Warranty
Warranty Notes: See written warranty for full details
Parts Warranty: Limited 2-year entire appliance
Labor Warranty: Limited 2-year entire appliance, Limited 5-year sealed system
