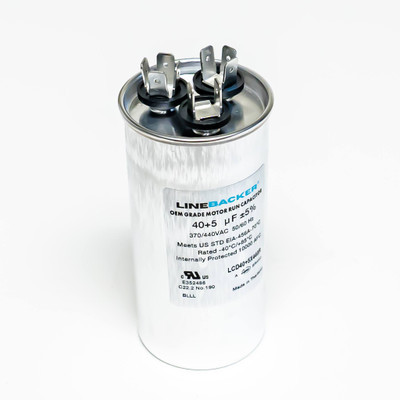

MODEL LCD40+5X440R
Dual Run Capacitor 40/5 MFD 370/440V Round
Additional information
| Weight | 0.50 lbs |
|---|---|
| Dimensions | 0.00 × 0.00 × 0.00 in |
Description
40/5 MF / 440 VA
A dual run capacitor rated at 40/5 microfarad (MFD) and 440 volts AC, designed for simultaneous operation of compressor and fan motors in HVAC systems. This round capacitor is suitable for both 370V and 440V applications and meets EIA-456A industry standards.
Key Features
- Dual capacitance configuration with 40 uF for compressor and 5 uF for fan motor
- Round aluminum housing with steel cap, PCB-free construction
- Operating temperature range of -40°F to 185°F (-40°C to 85°C)
- Quad blade quick connect terminals for secure wiring connections
- ±5% capacitance tolerance for consistent motor performance
Technical Specifications
| Specification | Value |
|---|---|
| Capacitance | 40/5 MFD (microfarad) |
| Voltage | 370/440 VAC |
| Type | Dual run capacitor |
| Shape | Round |
| Application | Motor run – compressor and fan |
Ideal For
- Central air conditioning compressor and condenser fan motor operation
- Heat pump system motor run applications
- Refrigeration compressor service replacements
- Residential and light commercial HVAC motor circuits
