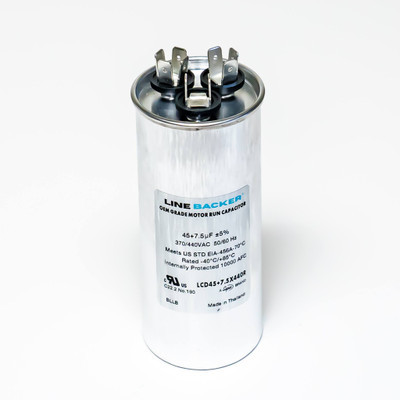

MODEL LCD45+7.5X440R
Dual Run Capacitor 45/7.5 MFD 370/440V Round
Additional information
| Weight | 0.50 lbs |
|---|---|
| Dimensions | 0.00 × 0.00 × 0.00 in |
Description
45/7.5 MF / 440 VA
A dual run capacitor rated at 45 microfarads and 7.5 microfarads with a voltage rating of 370/440 VAC. This round capacitor is designed for continuous operation in single-phase and three-phase AC motors with 50/60 Hz frequency.
Key Features
- Dual capacitance configuration with 45 uF and 7.5 uF sections for simultaneous compressor and fan motor operation
- Operating temperature range of -40 to 85 degrees Fahrenheit
- Plus or minus 5 percent tolerance for consistent performance
- UL and VDE certified for safety compliance
- Quad blade quick connect terminals for secure electrical connections
Technical Specifications
| Specification | Value |
|---|---|
| Capacitance | 45 + 7.5 MFD (microfarads) |
| Voltage | 370/440 VAC |
| Type | Dual Run Capacitor |
| Shape | Round |
| Application | HVAC motor run applications |
Ideal For
- Air conditioning compressor and condenser fan motor installations
- Refrigeration system motor applications
- Furnace blower motor replacements
- Heat pump residential and light commercial service
