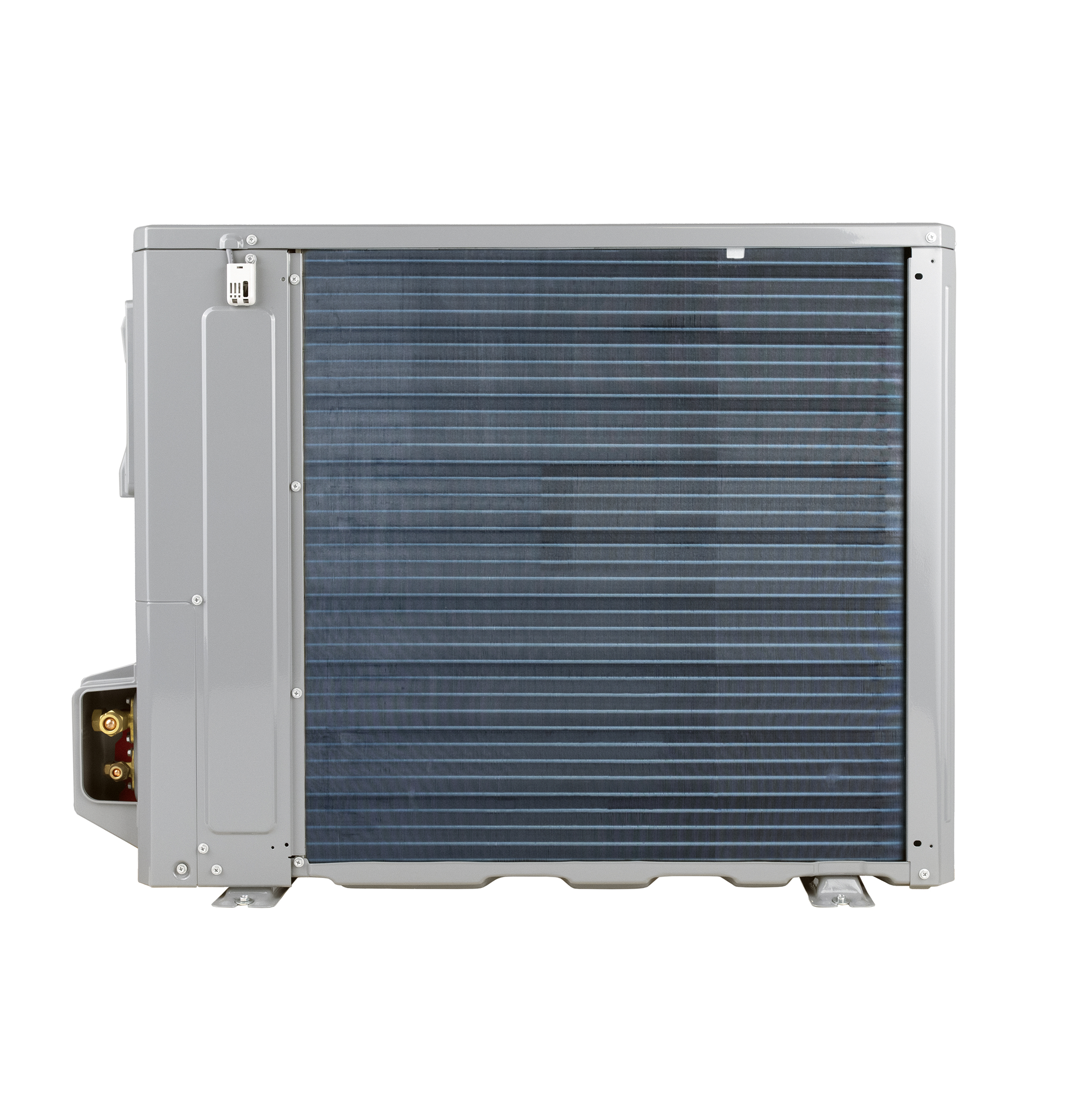

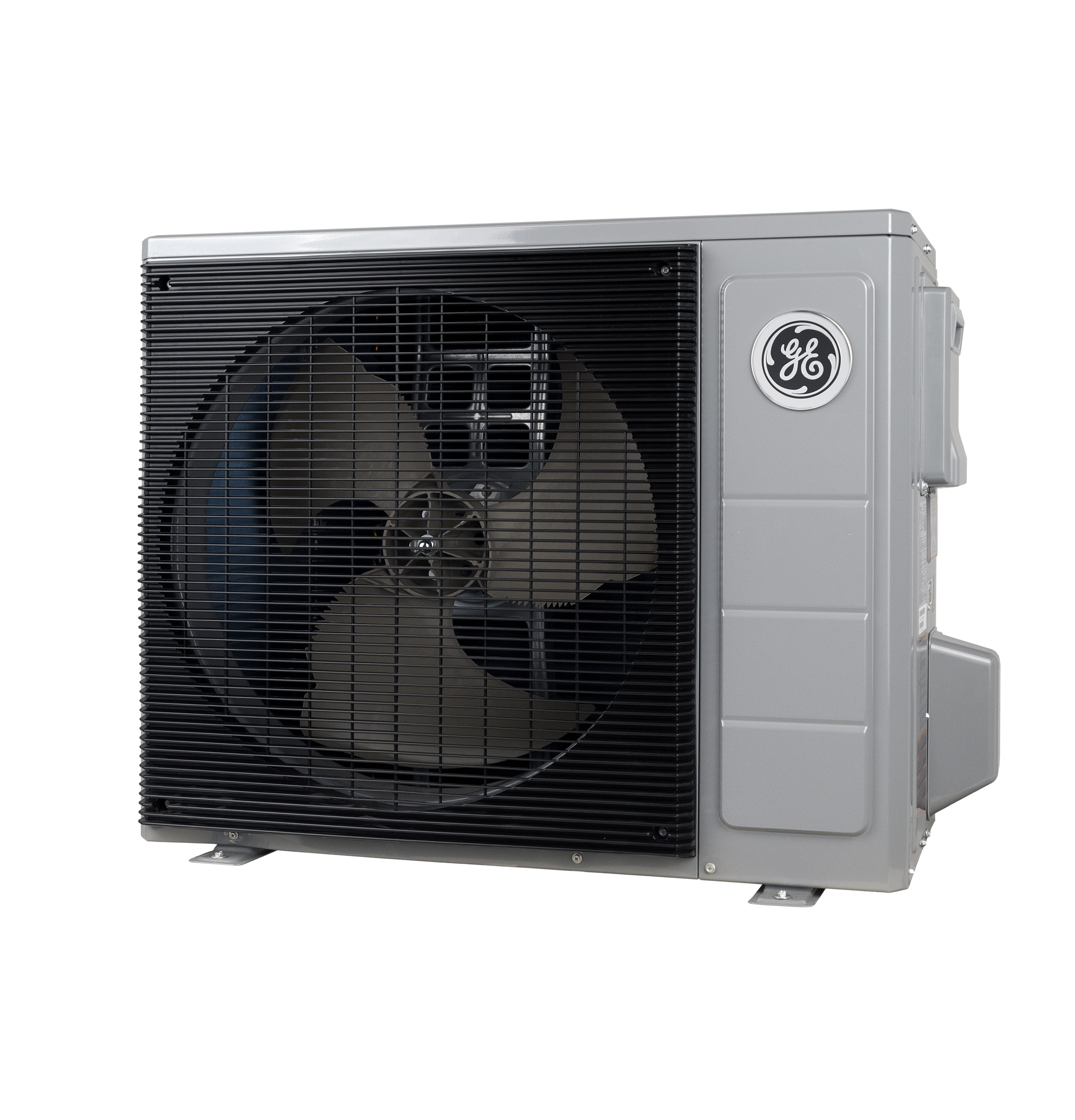

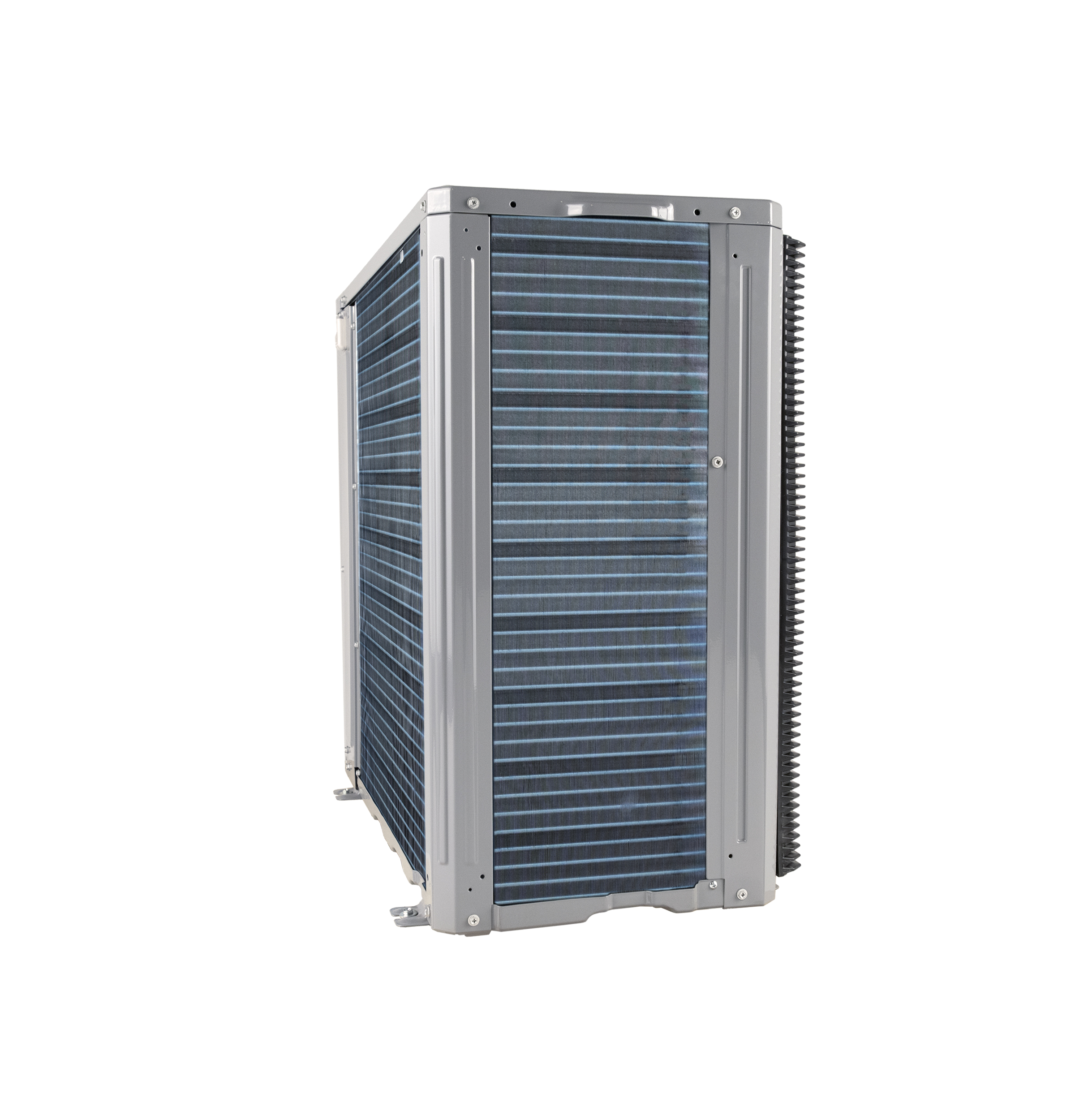

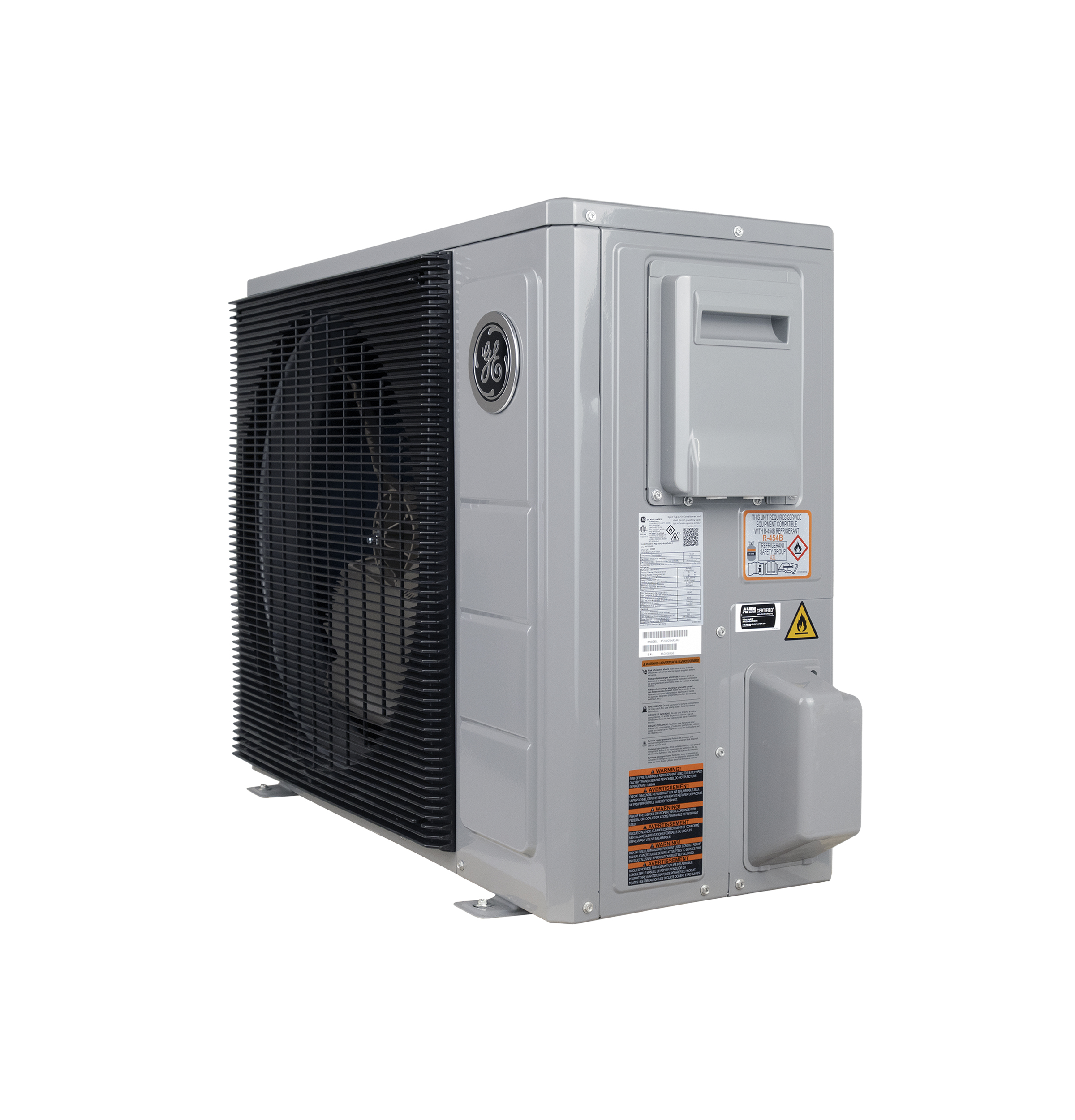

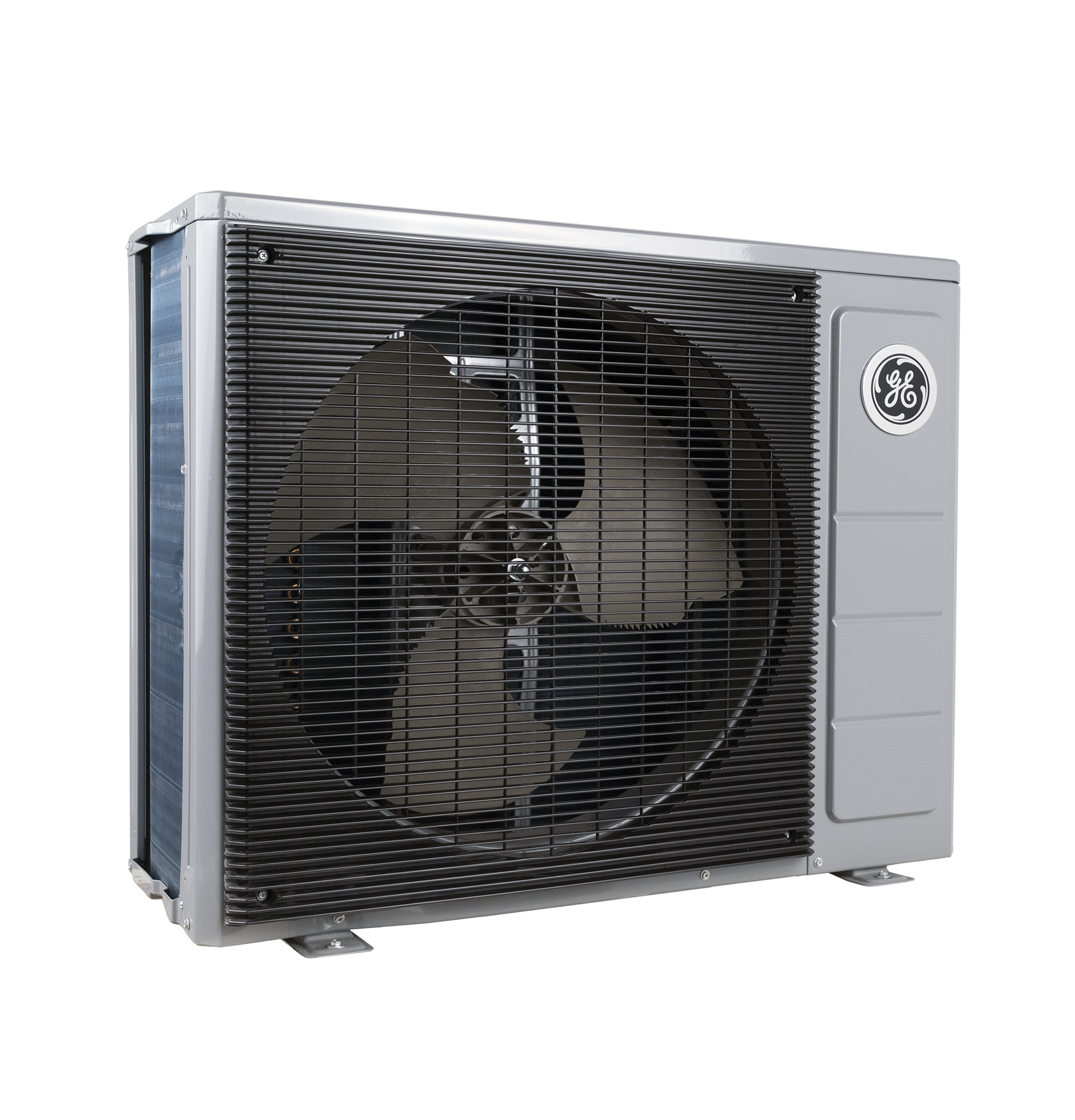

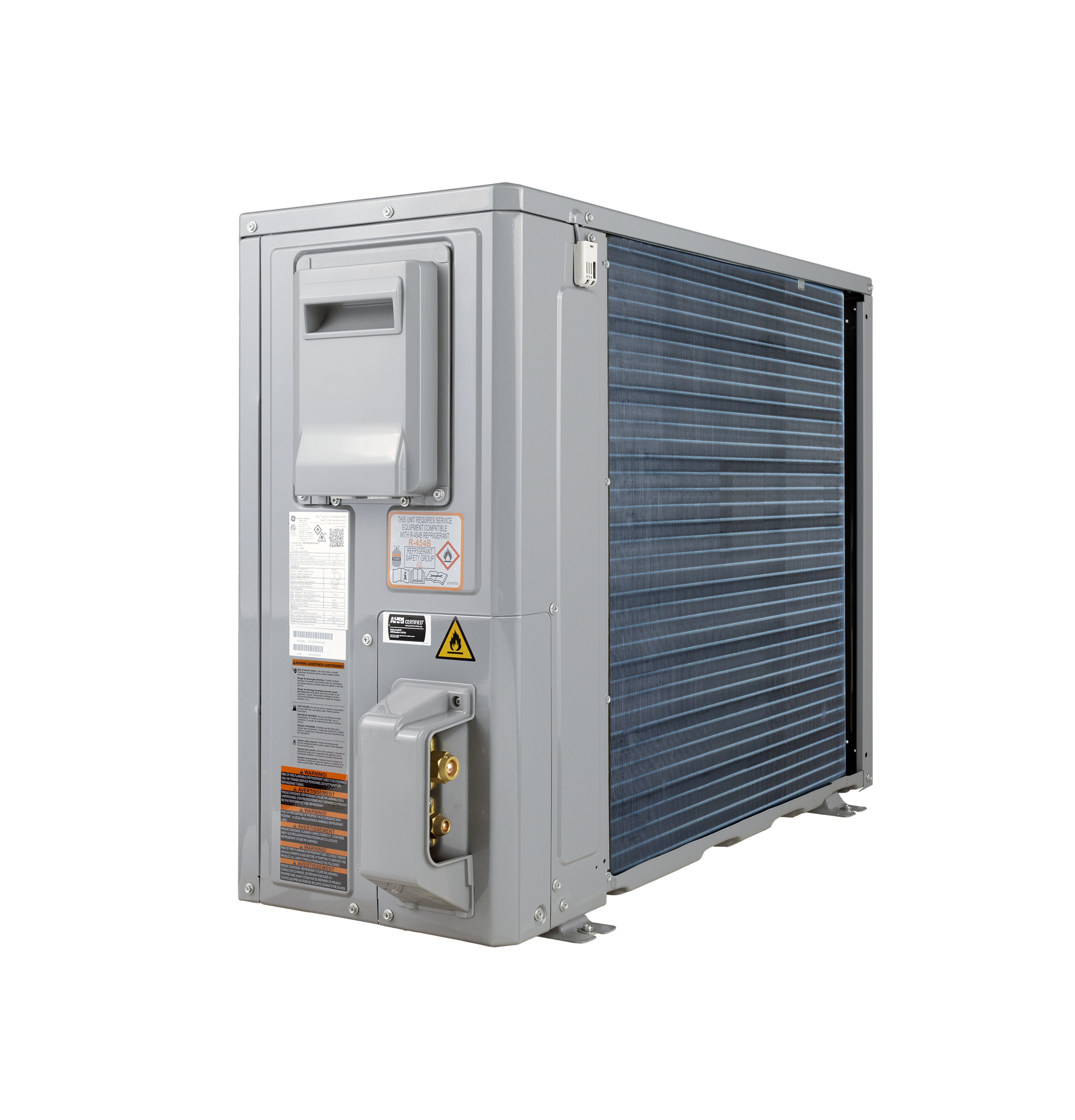

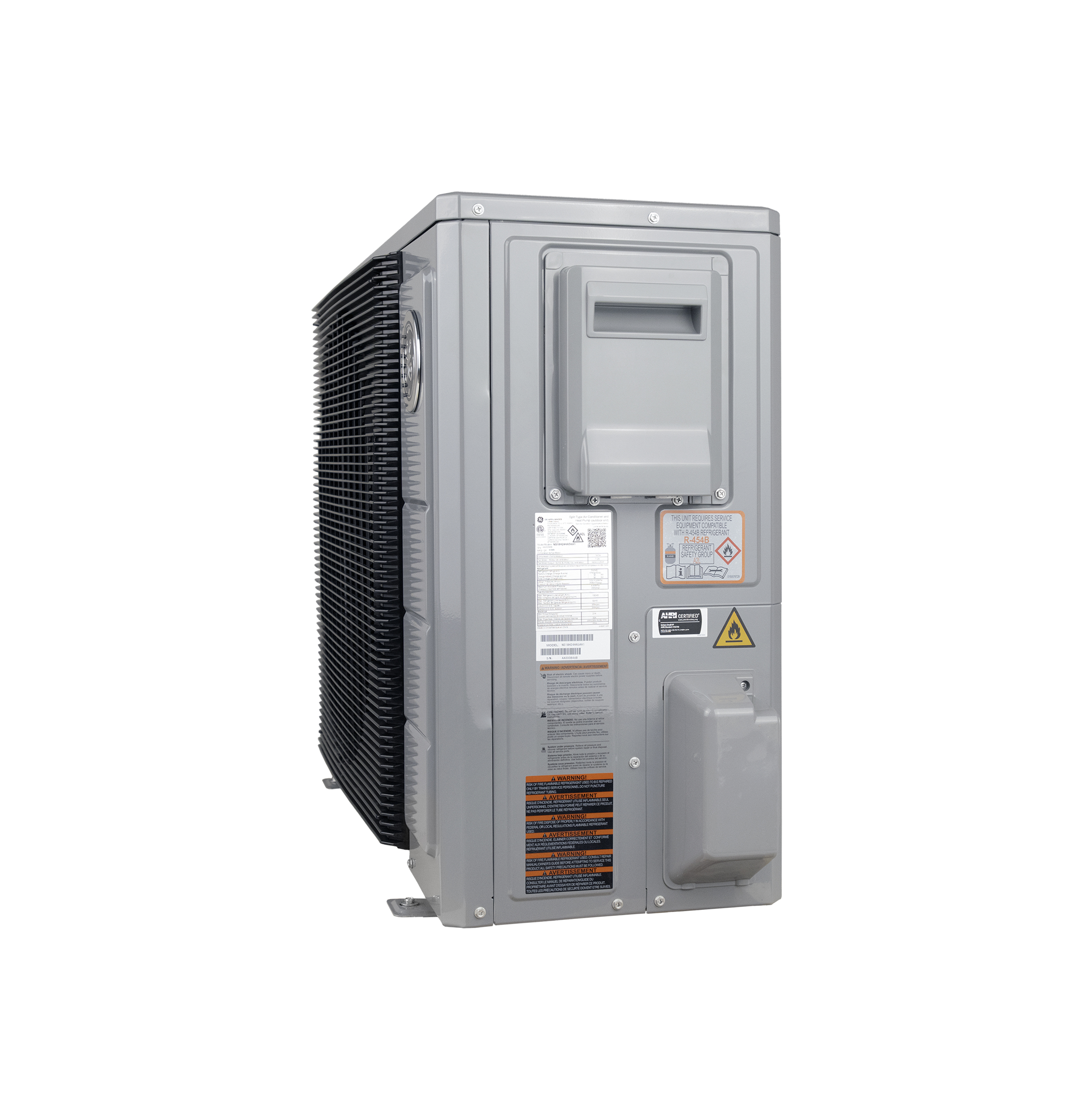

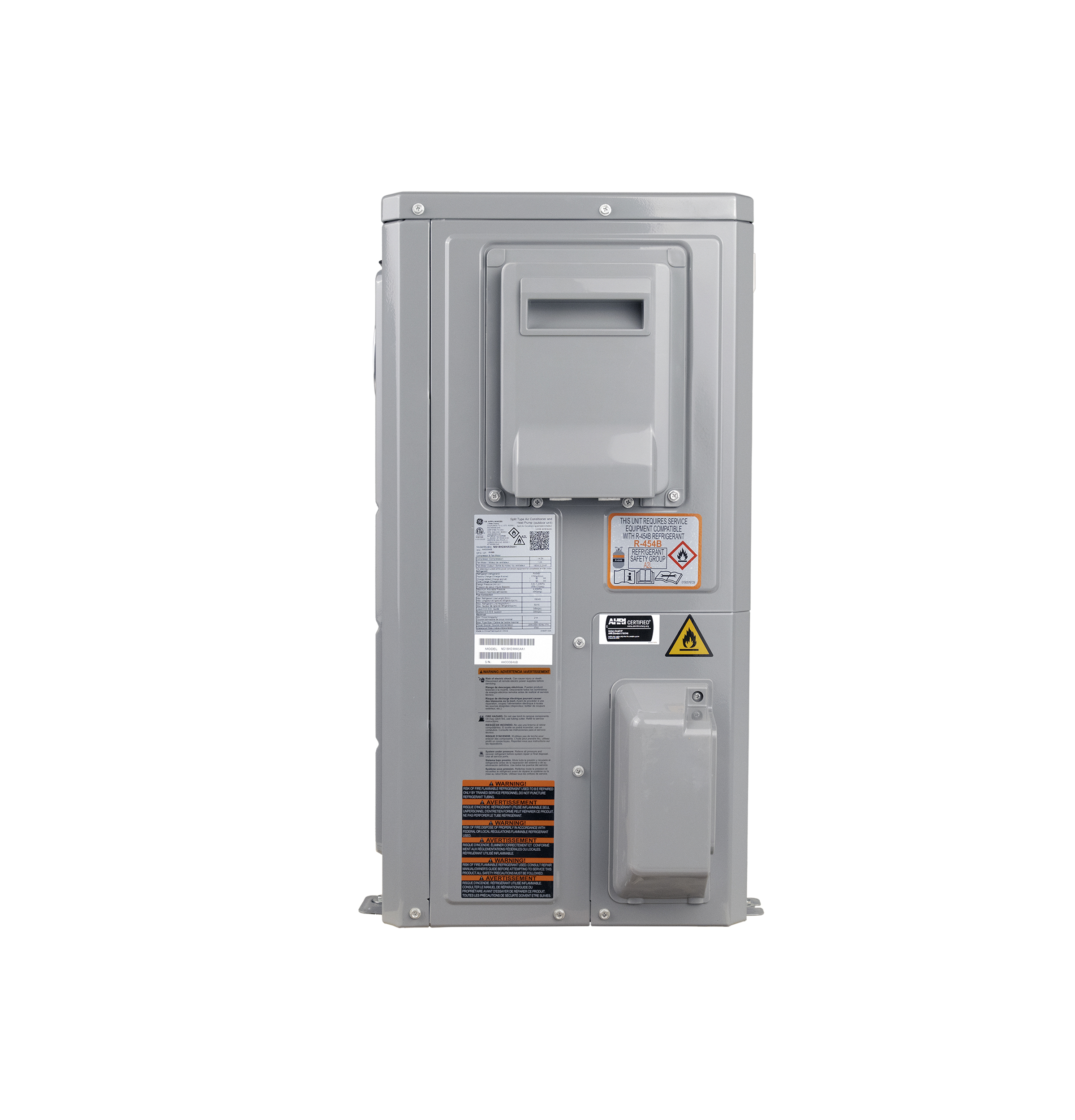

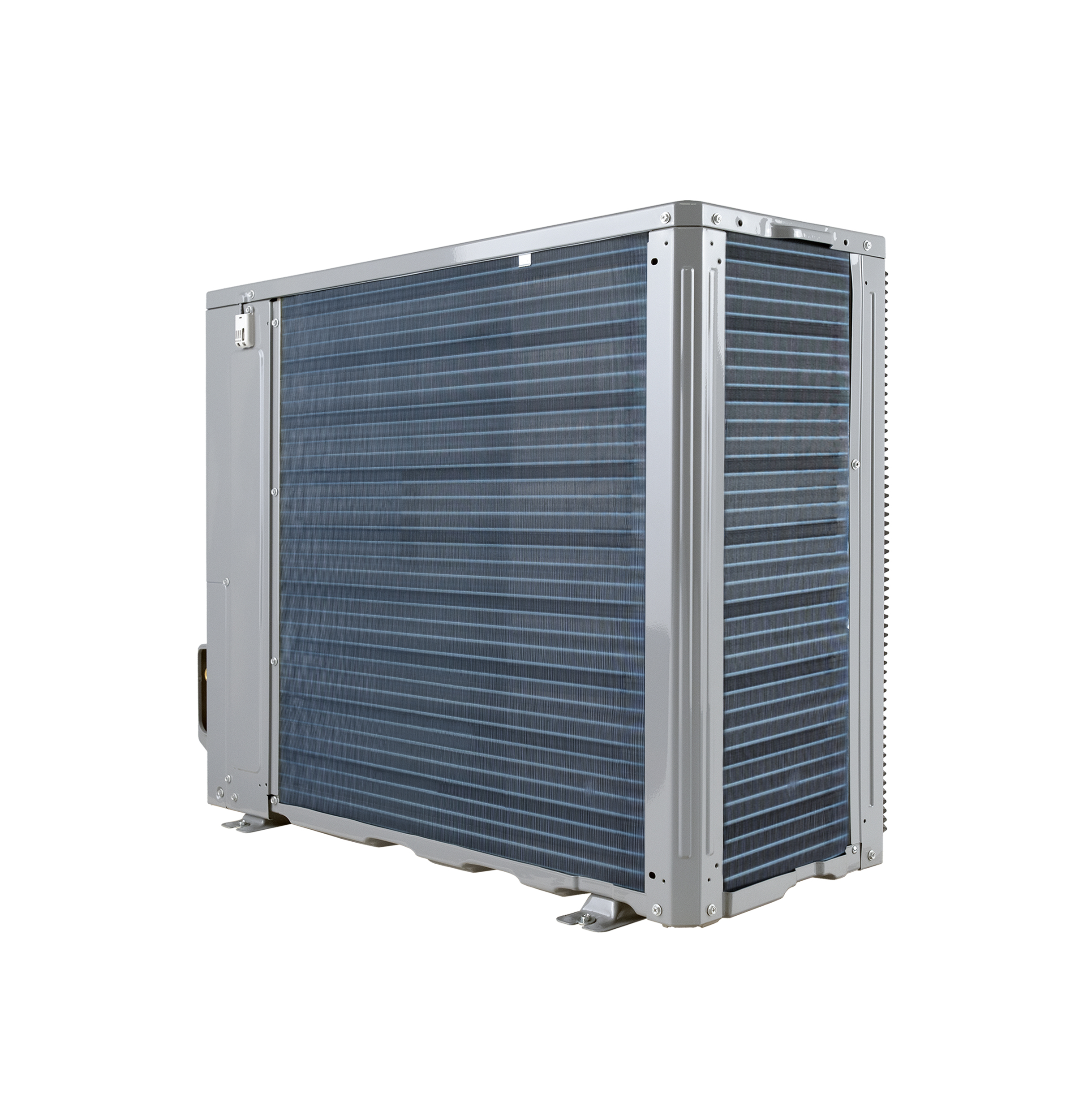

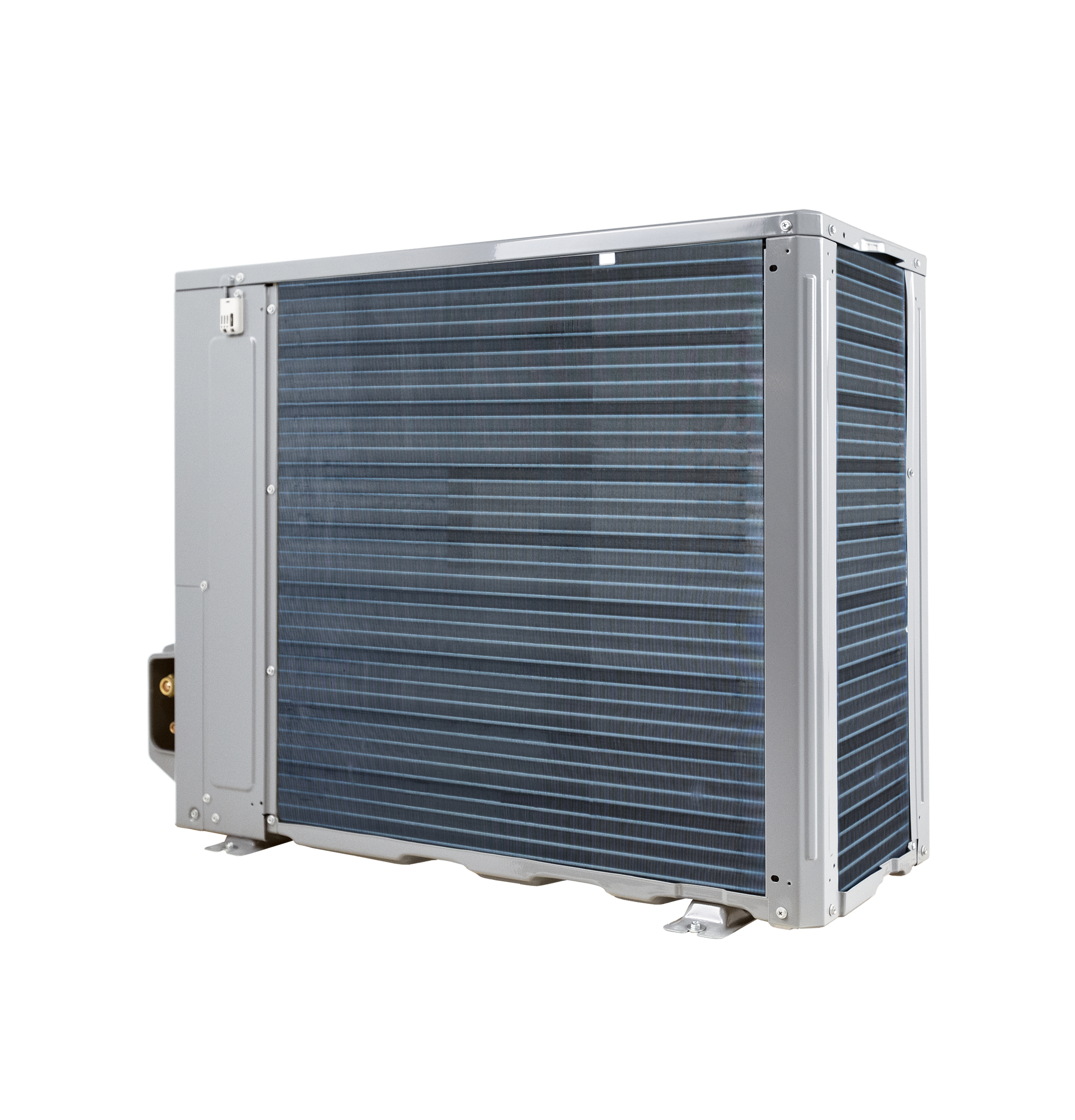

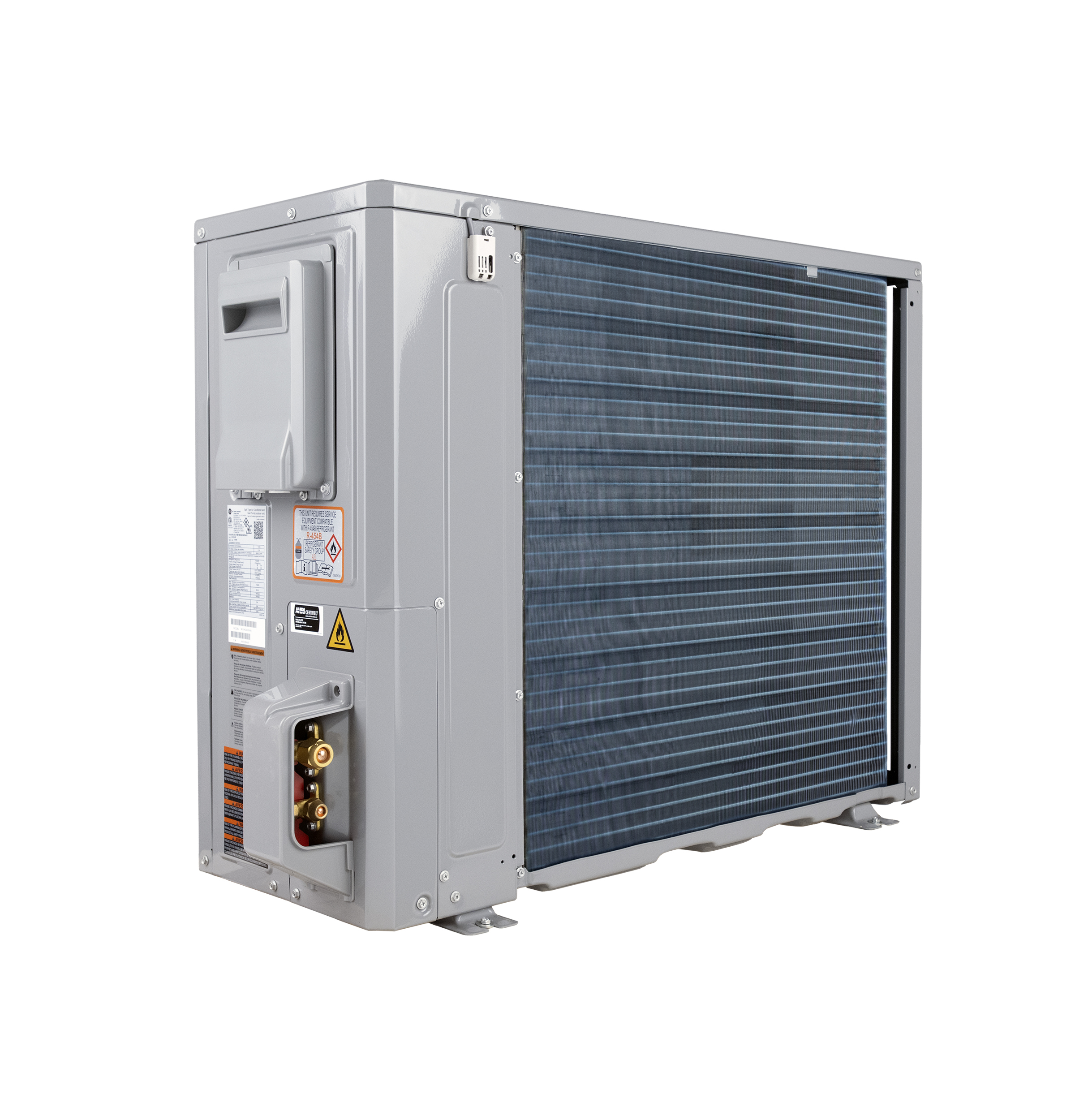

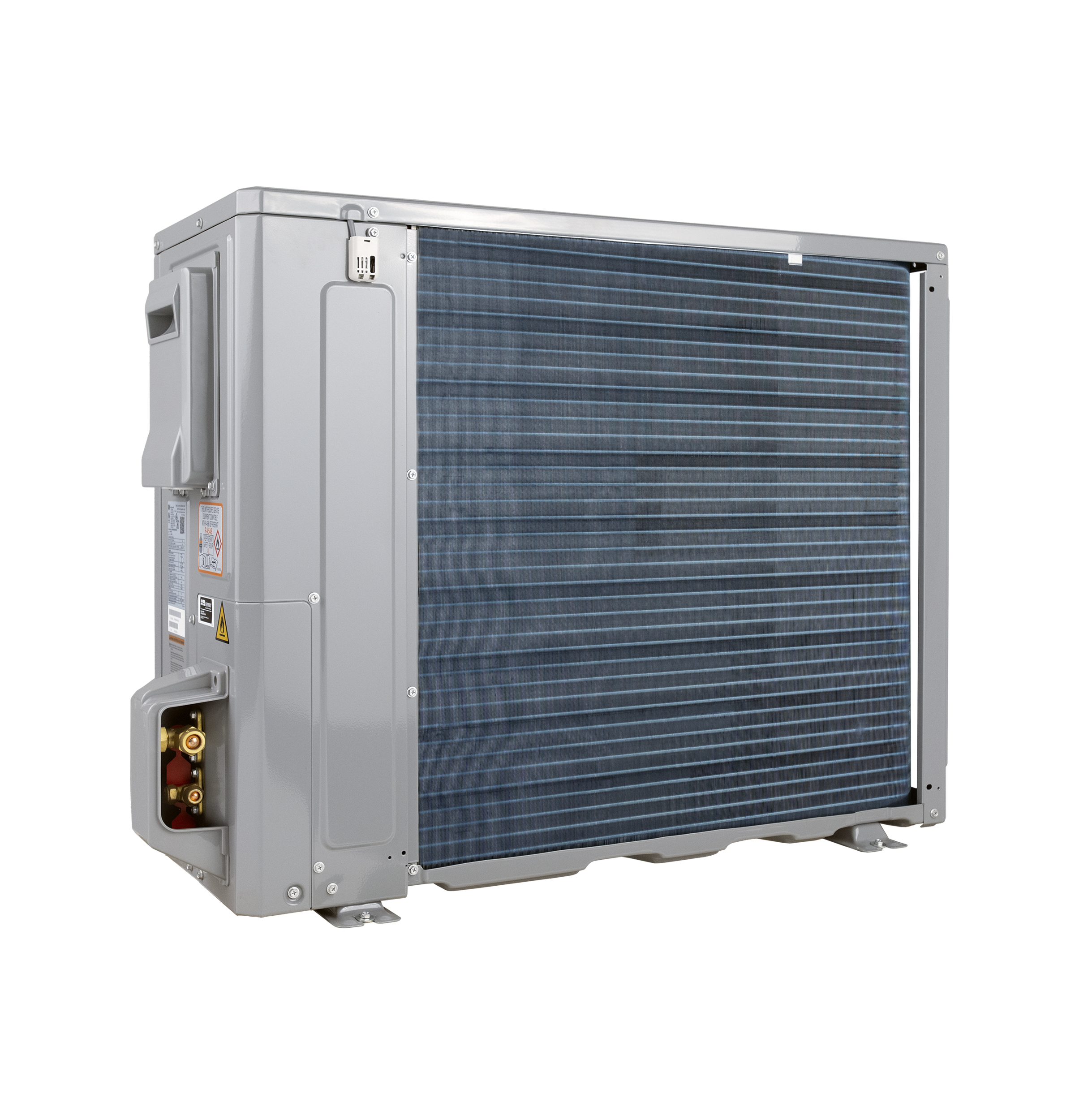

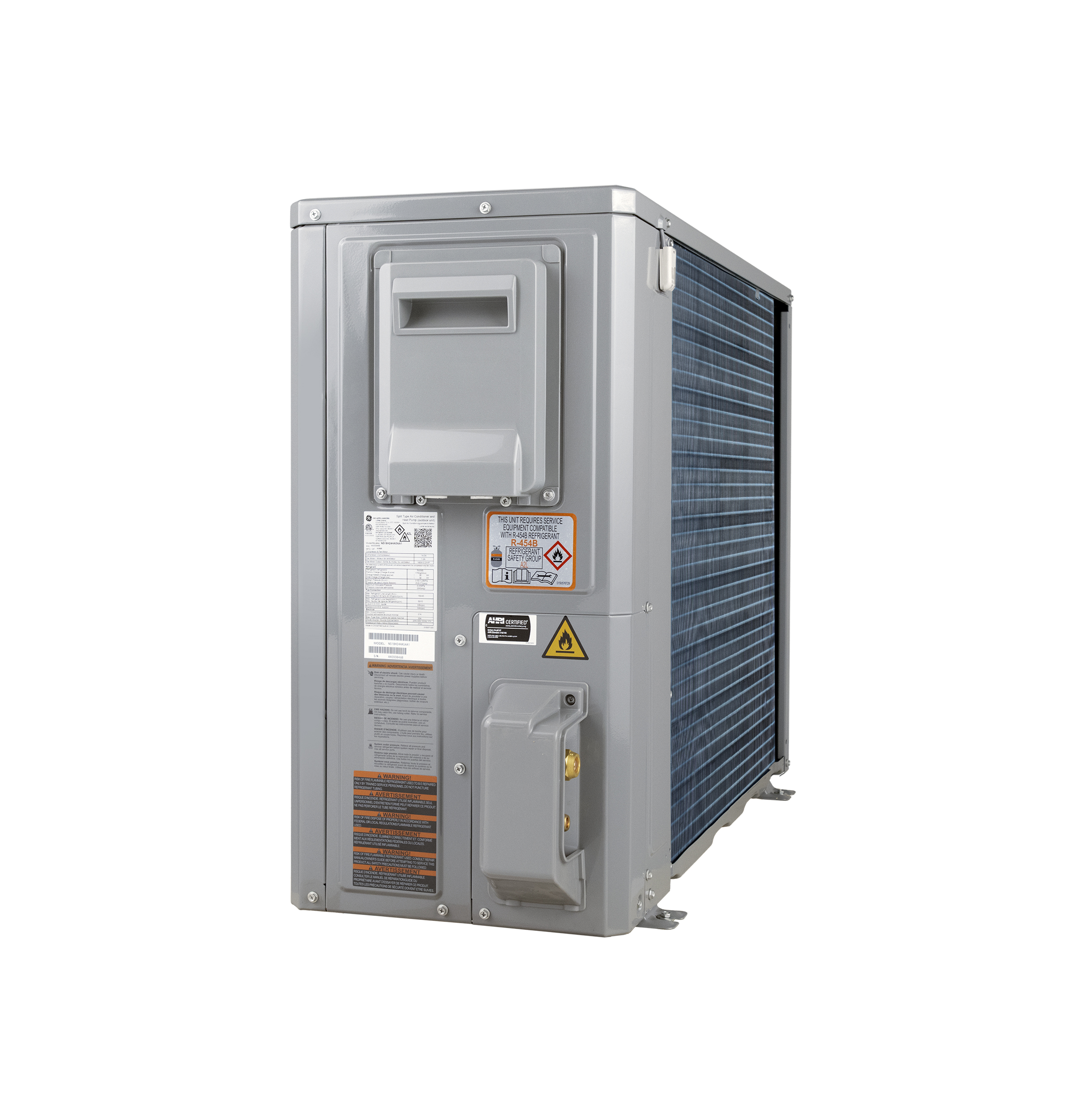

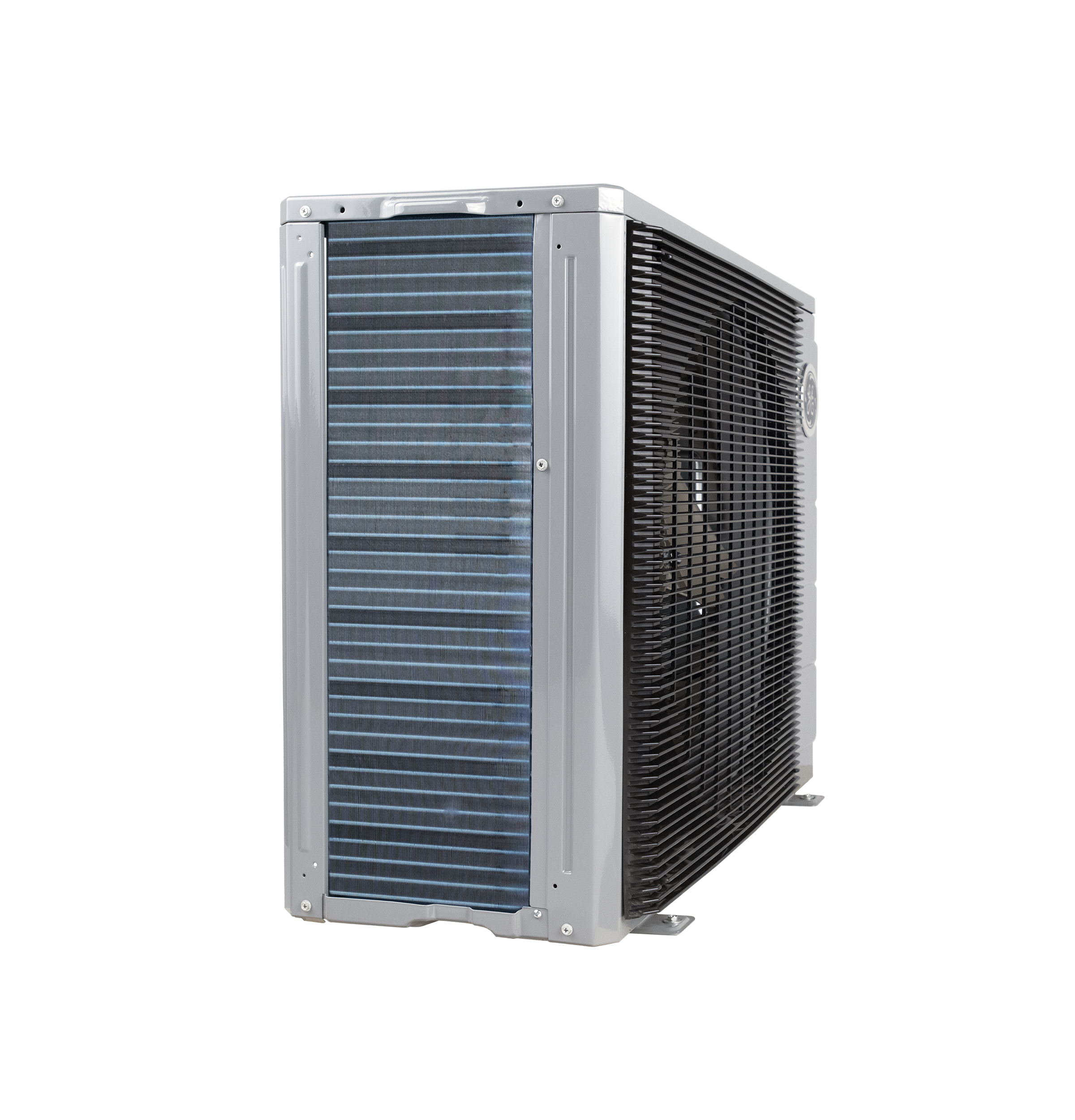

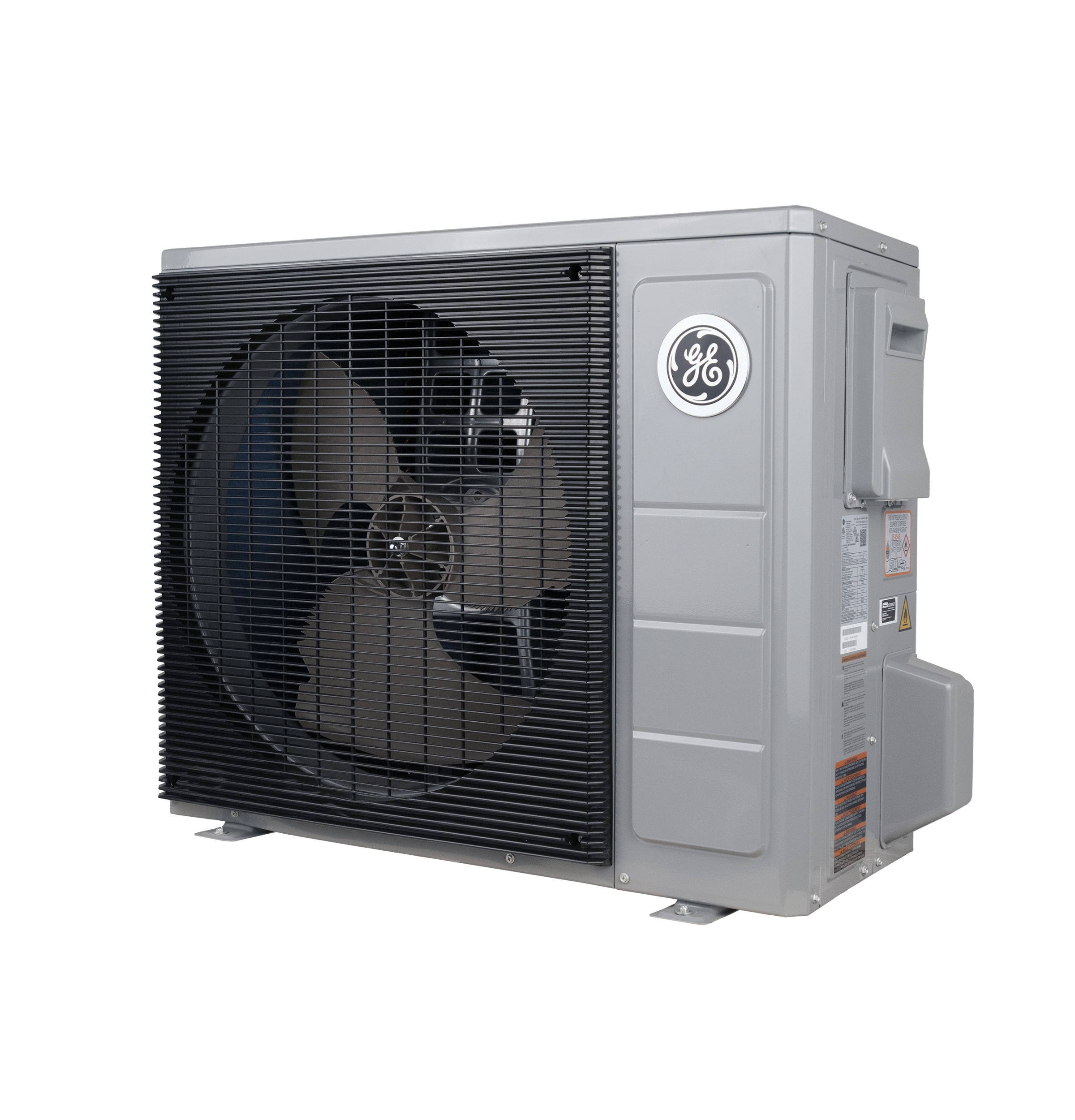

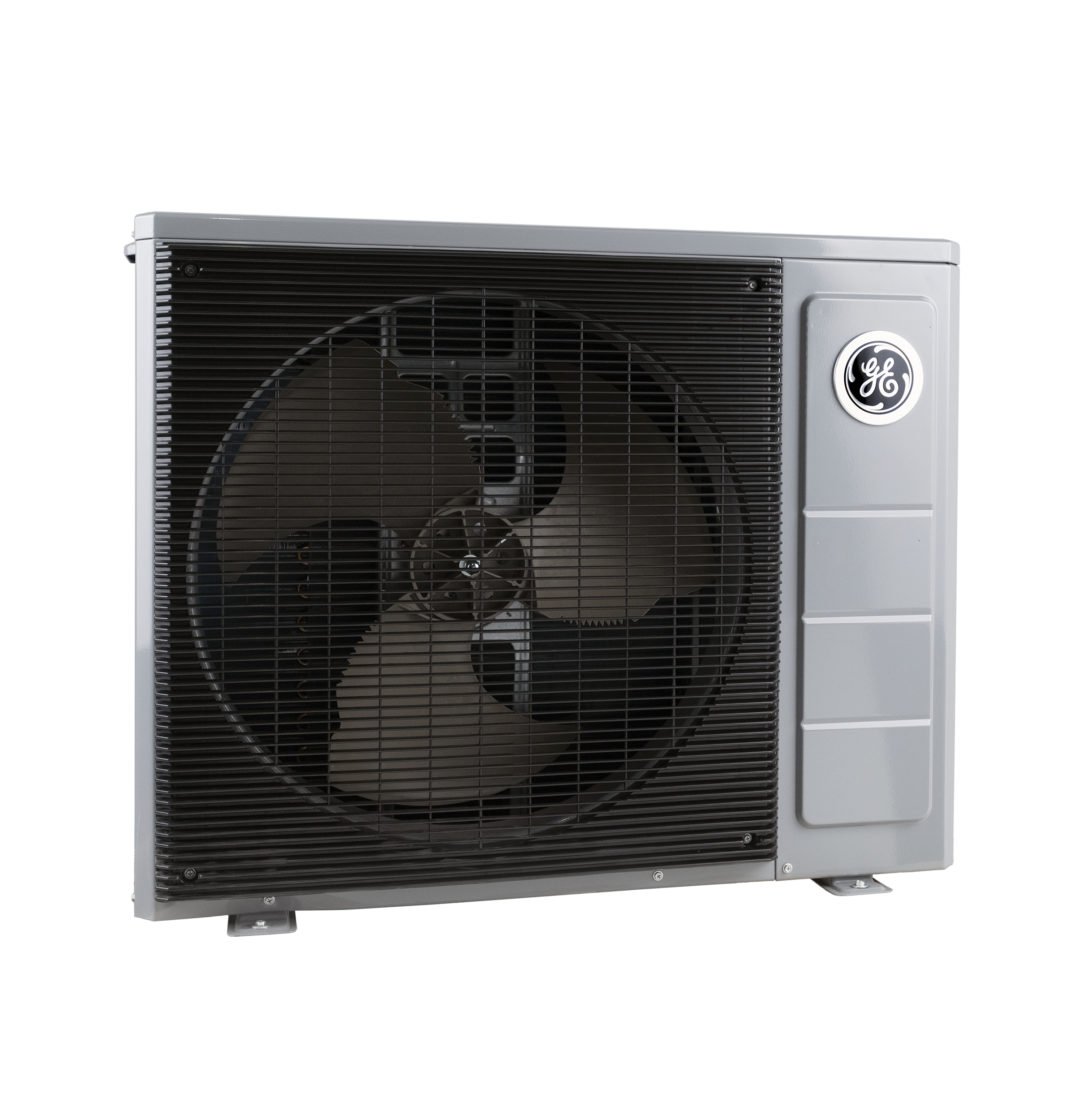

GE 2-Ton Connect Series Side-Discharge Inverter Heat Pump
Additional information
| Brand | GE |
|---|---|
| Tonnage | 2 |
| SEER2 | 18 |
| Stages | Inverter |
| Series | Connect Series |
| Refrigerant | R454B |
| Compressor | Inverter |
| Claims & Certifications | ENERGY STAR® Qualified |
| Product Type | Heat Pump |
| EER | 12 (when paired with NAM24V1TA5S) |
| Refrigerant Type | R454B |
| Series | Connect |
| Compressor Type | Inverter |
| HSPF Rating | 10 (when paired with NAM24V1TA5S) |
| Color Appearance | Gray |
| Style | Heat Pump |
| Tonnage | 2 |
| Unit Type | Outdoor |
| SEER2 | 18 |
| Cooling Rated Capacity BTU/Hr | 24000 |
| SEER | 18 (when paired with NAM24V1TA5S) |
Description
Features
R454b Refrigerant
R454B refrigerant is a low Global Warming Potential (GWP), eco-friendly option that meets updated refrigerant guidelines while maintaining high efficiency.
Cold Climate Comfort
Rated for heating down to -22°F and ENERGY STAR® certified, this cold climate heat pump delivers superior performance, even in extreme conditions.
Space Saving Solution
The ducted side-discharge configuration, with a compact depth of just 17 1/8” (NS18H24HA5), is ideal for zero lot line or limited space applications.
Industry Leading Install Clearances
Optimized for tight spaces, the Connect Series heat pump clearance requires just 4” in the back and 14” in the front.
Indoor Unit Flexibility
With over 600 AHRI certified matches, the Connect Series is compatible with GE Appliances air handlers, evaporator coils, and gas furnaces as well as third-party models.
24v Thermostat Compatible
Compatible with popular 24V thermostats, these units offer installation flexibility with no proprietary controls required!
High Performance Inverter Technology
The Connect Series energy-efficient inverter heat pump delivers up to 19 SEER2 and 10 HSPF2, offering homeowners cost-effective year-round climate control.
Quiet Operation
With quiet operation as low as 54 dB (NS18H24HA5), homeowners can rest easy knowing their comfort won’t be compromised by disruptive noise.
Weathertron Certified
When you see the Weathertron Certified badge, you know the product delivers energy-efficient comfort and year-round reliability — tested to perform in the toughest climates.
Ten-year Limited Warranty
Double the standard five-year warranty simply by registering the unit, giving your homeowners additional peace of mind. See warranty documentation for complete details.
See Specification Guide For Full Product Details.
Warranty
Warranty Notes: See written warranty for full details
Parts Warranty: Limited 10-year entire appliance with registration; Limited 5-year entire appliance
Labor Warranty: No Warranty
