GE · MODEL US24MB2BEA

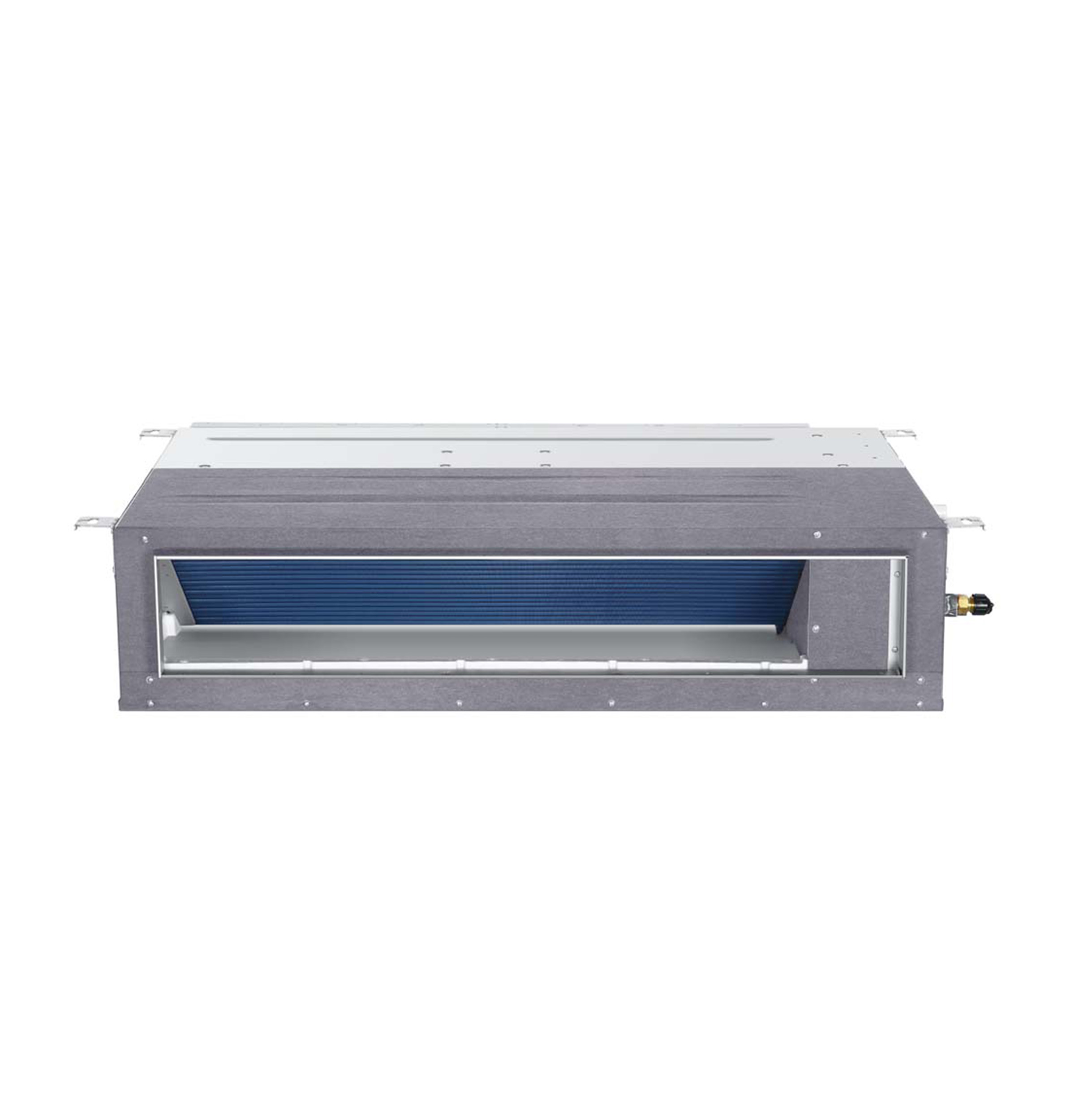

GE 208-230V 24,000 BTU Mid-Static Ducted Indoor Unit
Electrical208-230V
RefrigerantR454B
Dimensions9.75 H x 47.5 W x 27.5 D in
Documents
Additional information
| Dimensions | 27.5 × 47.5 × 9.75 in |
|---|---|
| Brand | GE |
| Voltage | 208-230V |
| BTU | 24K |
| Unit type | Ducted |
| Refrigerant | R454B |
| Claims & Certifications | ADA Compliant |
| Product Type | Commercial |
| Voltage/Hertz/Phase | 208-230/60/1 |
| Suction O.D. Refrigerant Line | 5/8" |
| Unit Type | Indoor |
| Built-In Condensate Pump | Yes |
| Series | Indoor Units (Compatible with Select Series) |
| Max. Drain-Lift Height (in) | 27 1/2 |
| Cooling Rated Capacity BTU/Hr | 24,000 |
| Fan Speed Stages | 5 + Auto |
| Style | Mid-Static Ducted |
| Max. External Static Pressure | 0.6 |
| Liquid O.D. Refrigerant Line | 3/8" |
| Refrigerant Type | R454B |
| Drainpipe Size (in) | 1 |
Description
Warranty
Parts Warranty: 10-Year registered limited parts warranty; 5-Year limited parts warranty
Labor Warranty: No Warranty
Warranty Notes: See written warranty for full details
