GE · MODEL 1G3036AD2BEA

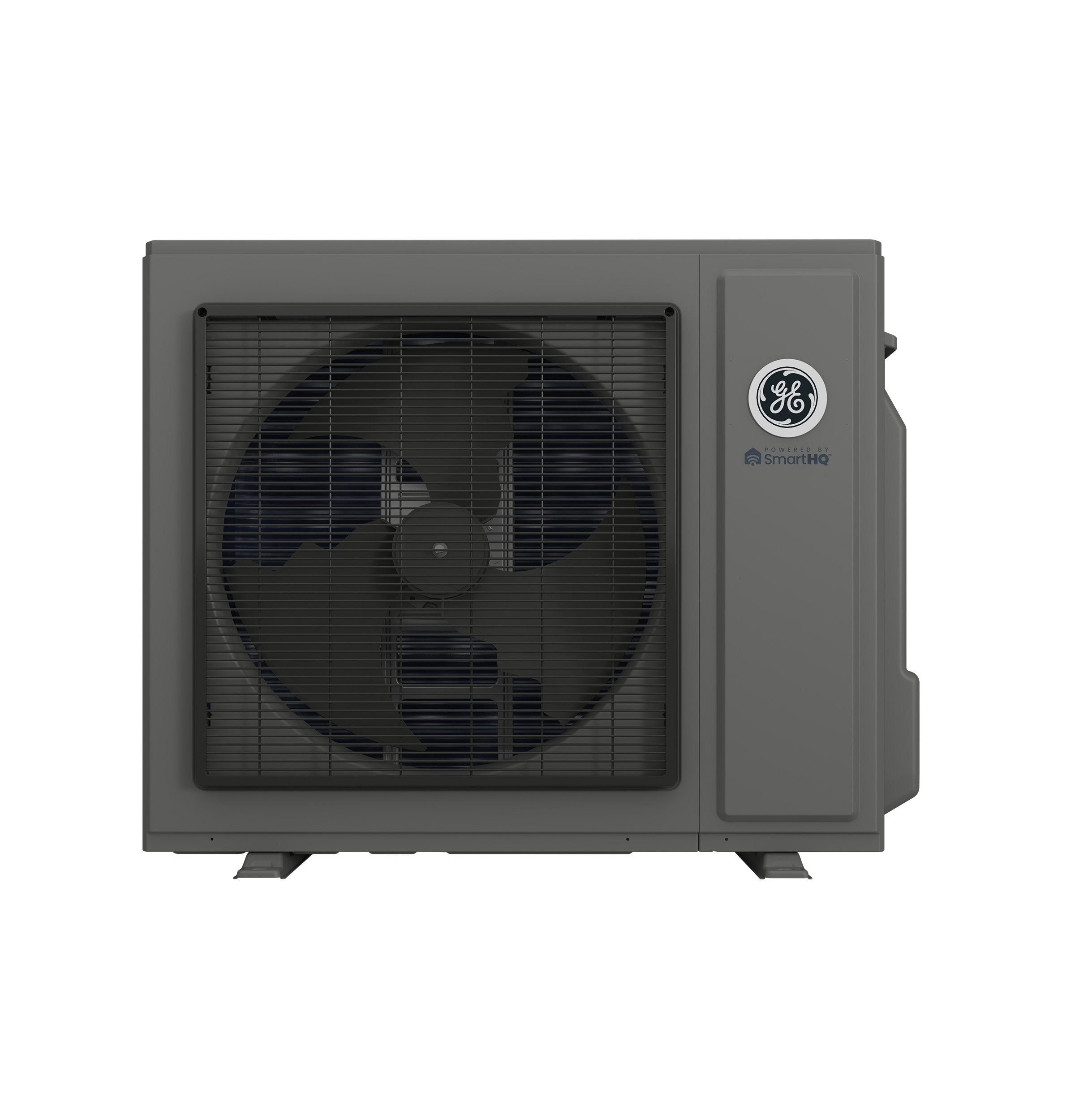

GE Altitude Series 208-230V 30,000/36,000 BTU Ductless Mini-Split Outdoor Heat Pump
SEER218
Electrical208-230V
RefrigerantR454B
Dimensions32.125 H x 40.375 W x 14.625 D in
Documents
Additional information
| Dimensions | 14.625 × 40.375 × 32.125 in |
|---|---|
| Brand | GE |
| Voltage | 208-230V |
| BTU | 36K |
| Series | Altitude Series |
| Unit type | Outdoor Unit |
| Refrigerant | R454B |
| SEER2 | 18 |
| Claims & Certifications | ADA Compliant |
| Product Type | Single Zone |
| Voltage/Hertz/Phase | 208/230/60/1 |
| Outdoor Noise Level | 64 dBA |
| Base Pan Heater | Yes |
| System | 30-36K Altitude |
| Factory Charge (ounces) | 88.2 oz |
| Temperature Range - Cooling Mode | -40°F-115°F (-40-46℃) with wind baffle or top cover |
| Suction O.D. Refrigerant Line | 5/8" |
| Unit Type | Outdoor |
| Color Appearance | Gray |
| Minimum Circuit Amp | 25 |
| Temperature Range - Heating Mode | -15-75°F (-26-24℃) |
| Maximum Fuse Size A | 35 |
| Maximum Line Length (Ft/M) | 165/50 |
| Series | Altitude |
| HSPF2 Rating | 9.5 |
| Cooling Rated Capacity BTU/Hr | 28,400 / 32,400 |
| Style | Outdoor |
| Connections | Flare |
| Liquid O.D. Refrigerant Line | 3/8" |
| Rotary Compressor | DC Inverter Driven Rotary |
| Refrigerant Type | R454B |
| SEER2 | 18 |
| Compatible Indoor Models | GS30WB2BEA or GS36WB2BEA |
| Maximum Height (Ft/m) | 100/30 |
Description
Warranty
Parts Warranty: 10-Year registered limited parts warranty; 5-Year limited parts warranty
Labor Warranty: No Warranty
Warranty Notes: See written warranty for full details
