GE · MODEL 3G24ED2BEA

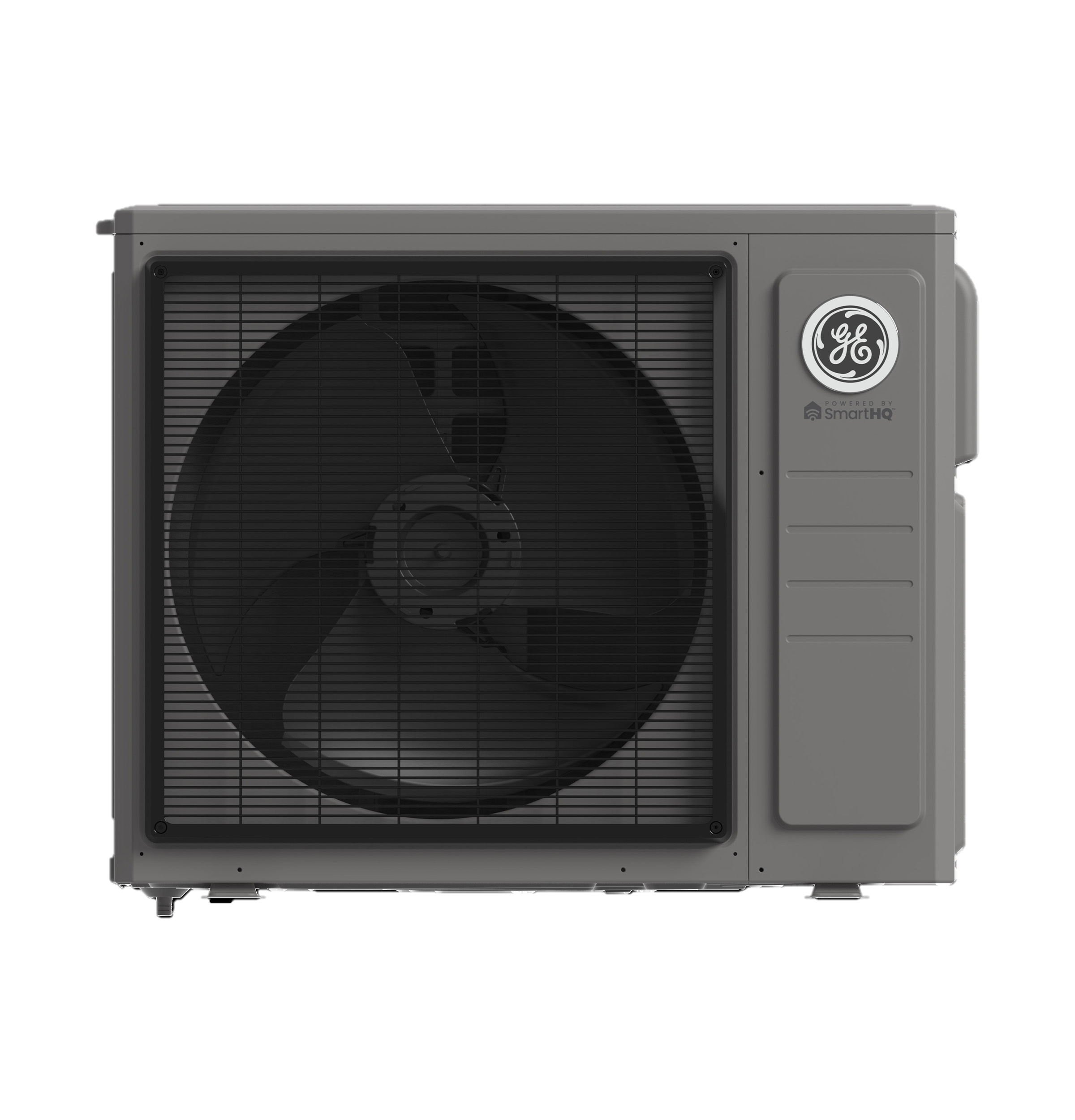

GE Endure Series 208-230V 3-Zone 24,000 BTU Ductless Mini-Split Outdoor Heat Pump
Electrical208-230V
RefrigerantR454B
Dimensions30.125 H x 37.1875 W x 15.8125 D in
Documents
Additional information
| Dimensions | 15.8125 × 37.1875 × 30.125 in |
|---|---|
| Brand | GE |
| Voltage | 208-230V |
| BTU | 24K |
| Zones | 3 |
| Series | Endure Series |
| Unit type | Outdoor Unit |
| Refrigerant | R454B |
| Claims & Certifications | ADA Compliant |
| Product Type | Multi Zone |
| Voltage/Hertz/Phase | 208-230/60/1 |
| Outdoor Noise Level | 57 dBA |
| Base Pan Heater | Yes |
| System | 3-Zone Endure Multi |
| Factory Charge (ounces) | 71 oz |
| Temperature Range - Cooling Mode | -14-115°F (-10-46°C) |
| Suction O.D. Refrigerant Line | 3/8", 3/8", 3/8" |
| Unit Type | Outdoor |
| Color Appearance | Gray |
| Minimum Circuit Amp | 21 |
| Number of Indoor Models | 3 |
| Temperature Range - Heating Mode | -22-75°F (-30-24°C) |
| Maximum Fuse Size A | 30 |
| Maximum Line Length (Ft/M) | 197/60 |
| Series | Endure Multi |
| Cooling Rated Capacity BTU/Hr | 24,000 |
| Style | Outdoor |
| Connections | Flare |
| Liquid O.D. Refrigerant Line | 1/4", 1/4", 1/4" |
| Rotary Compressor | DC Inverter Driven Rotary |
| Refrigerant Type | R454B |
| Compatible Indoor Models | Select Indoor Units |
| Maximum Height (Ft/m) | 50/15 |
Description
Warranty
Parts Warranty: 10-Year registered limited parts warranty; 5-Year limited parts warranty
Labor Warranty: No Warranty
Warranty Notes: See written warranty for full details
