GE · MODEL AHES12D3XXA
GE Hotpoint® PTAC with Electric Heat 12,000 BTU, 230/208V, 20amp
RefrigerantR32
Dimensions16 H x 42.4 W x 20.90 D in
Documents
Additional information
| Dimensions | 20.90 × 42.4 × 16 in |
|---|---|
| Brand | GE |
| Refrigerant | R32 |
| Claims & Certifications | AHRI, CSA, CUL, UL, NRCAN |
| Cooling BTUH (MAX) | 12400.000000 |
| Control Type | Electronic |
| Fan Speed Selections | 2 Cooling, 2 Fan Only, 2 Heating |
| Discharge Grille | 2-position |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R32 |
| Manual Vent Control | Hidden |
| "SmartFan" Fan Cycle | Yes |
| Chassis Type | Slide-In |
| Fan Motor | 1 |
| Cooling - Amperes | 6.1/5.8 |
| Installation | Through-the-Wall |
| Unit Features | Auto Power Recovery, Automatic Indoor Frost Control, Freeze Sentinel, Power Cord (LCDI) included, Remote Thermostat Compatibility (Accessory Kit Required) |
| Cooling EER (BTUH / Watt) | 10.4/10.5 |
| Cooling - Watts | 1190/1160 |
| Temperature Range | 62 – 80 F |
| Heat - Cool | Yes |
| Auto Power Recovery | Yes |
| Voltage (MIN) | 208 |
| Heating - Electric - Heater Watts | 3500 |
| Rotary Compressor | Yes |
| Outdoor Vent / Exhaust | Yes |
| Cooling BTUH (MIN) | 12200 |
| Voltage (MAX) | 230.000000 |
| Color Appearance | White |
| Venting Features | Concealed Manual Vent Control |
| Heating System | Electric Resistance |
Description
Features
2 Fan Speeds
4 Temperature-limiting Options
Auto Dimming Display
Slinger Ring Condensate Removal

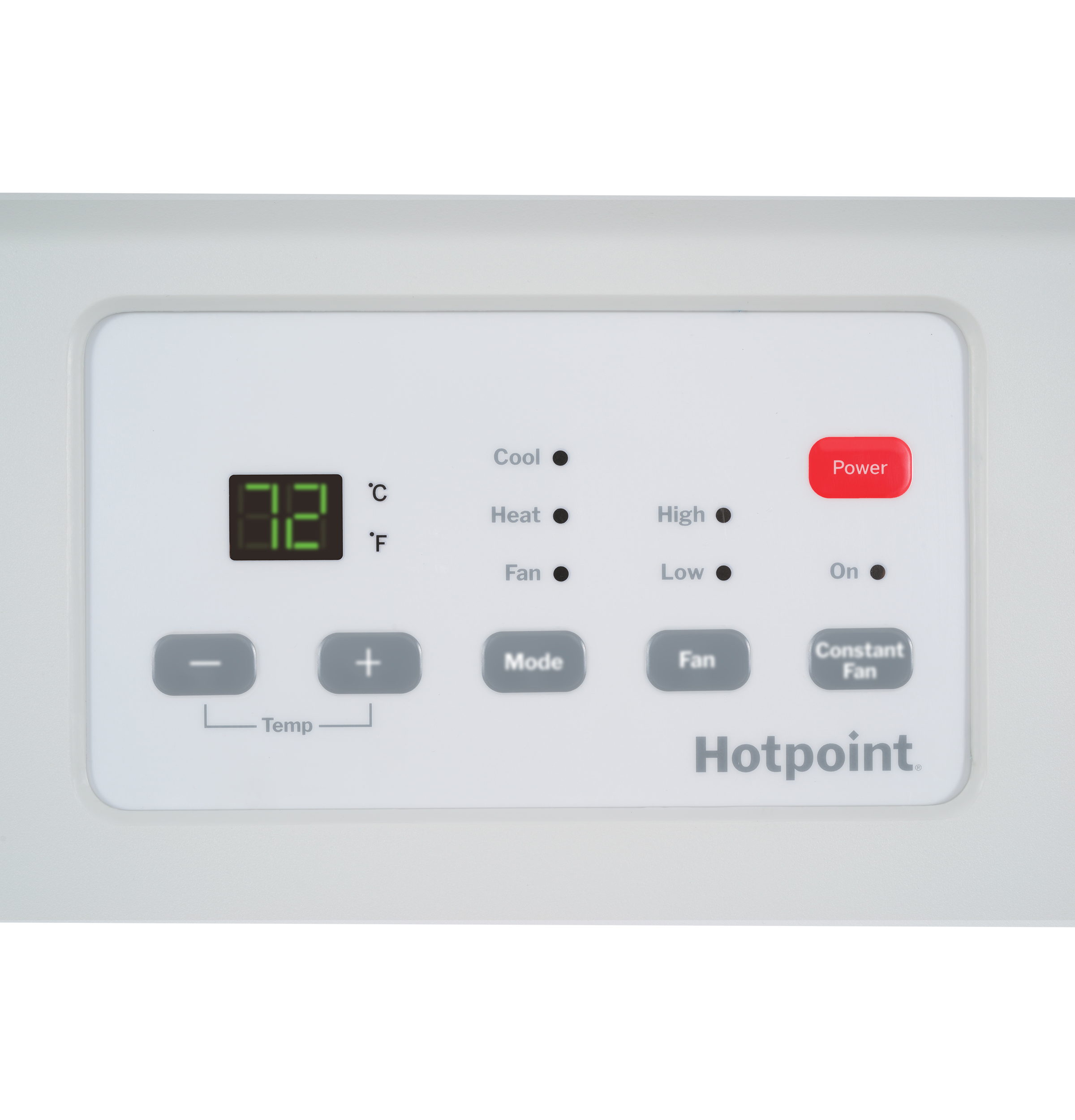

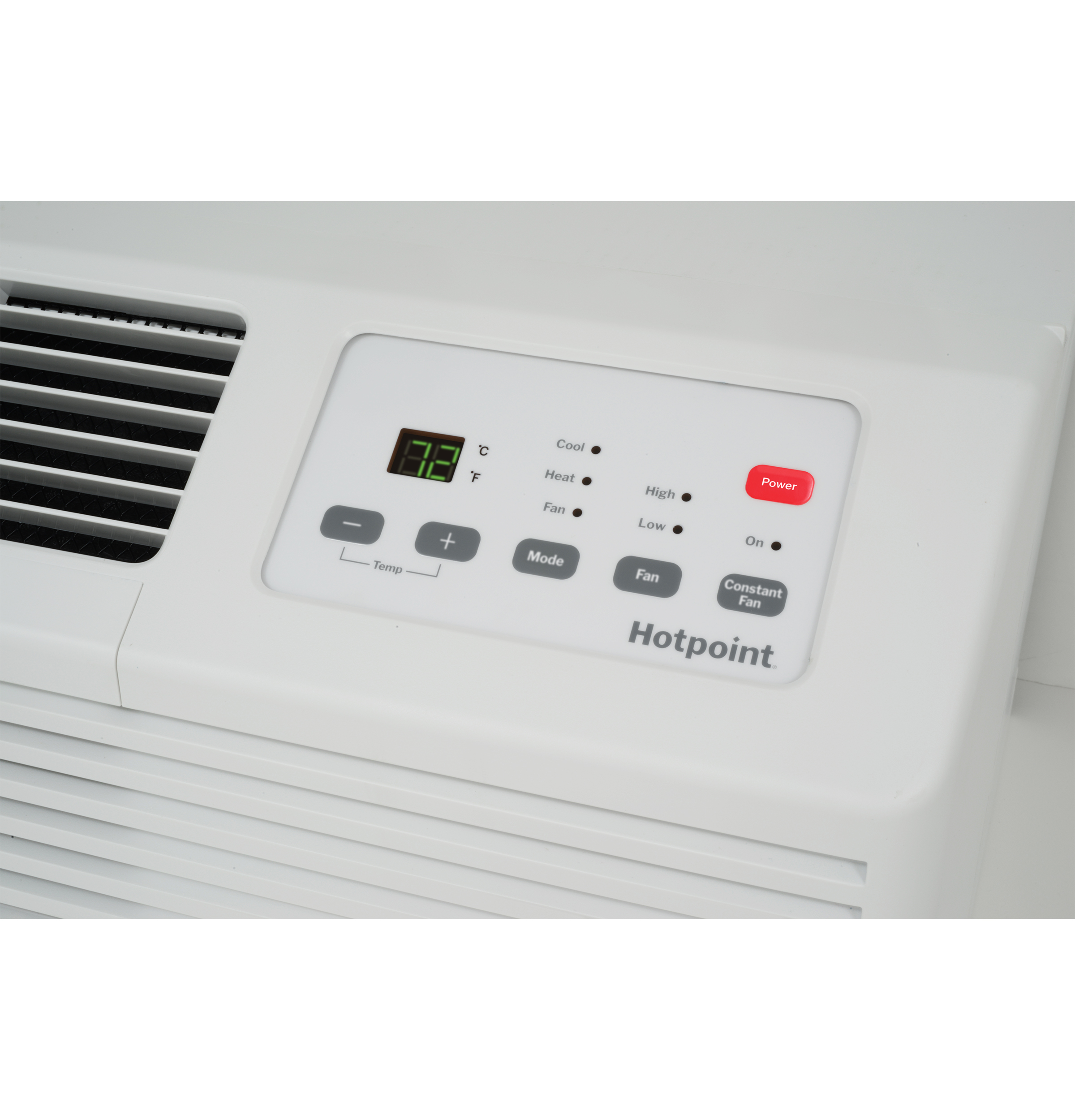

Coverless Control Panel
Automatic Emergency Heat
Freeze/frost & Overheat Protection
Auto Power Recovery
Self-diagnostics
Constant Fan Button
Warranty
Labor Warranty: Limited 1-year entire appliance, Limited 5-year sealed system
Parts Warranty: Limited 2-year entire appliance
