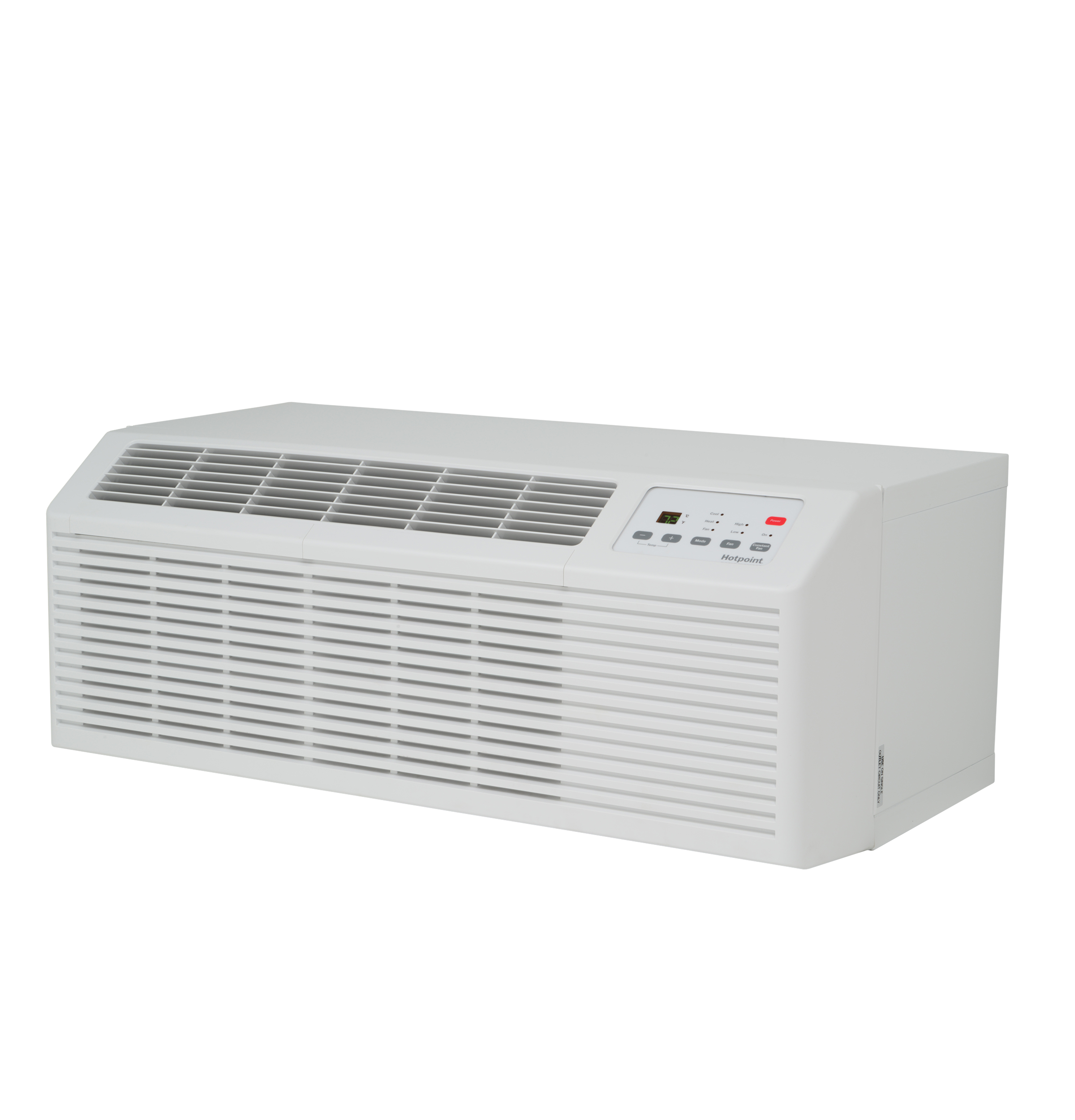

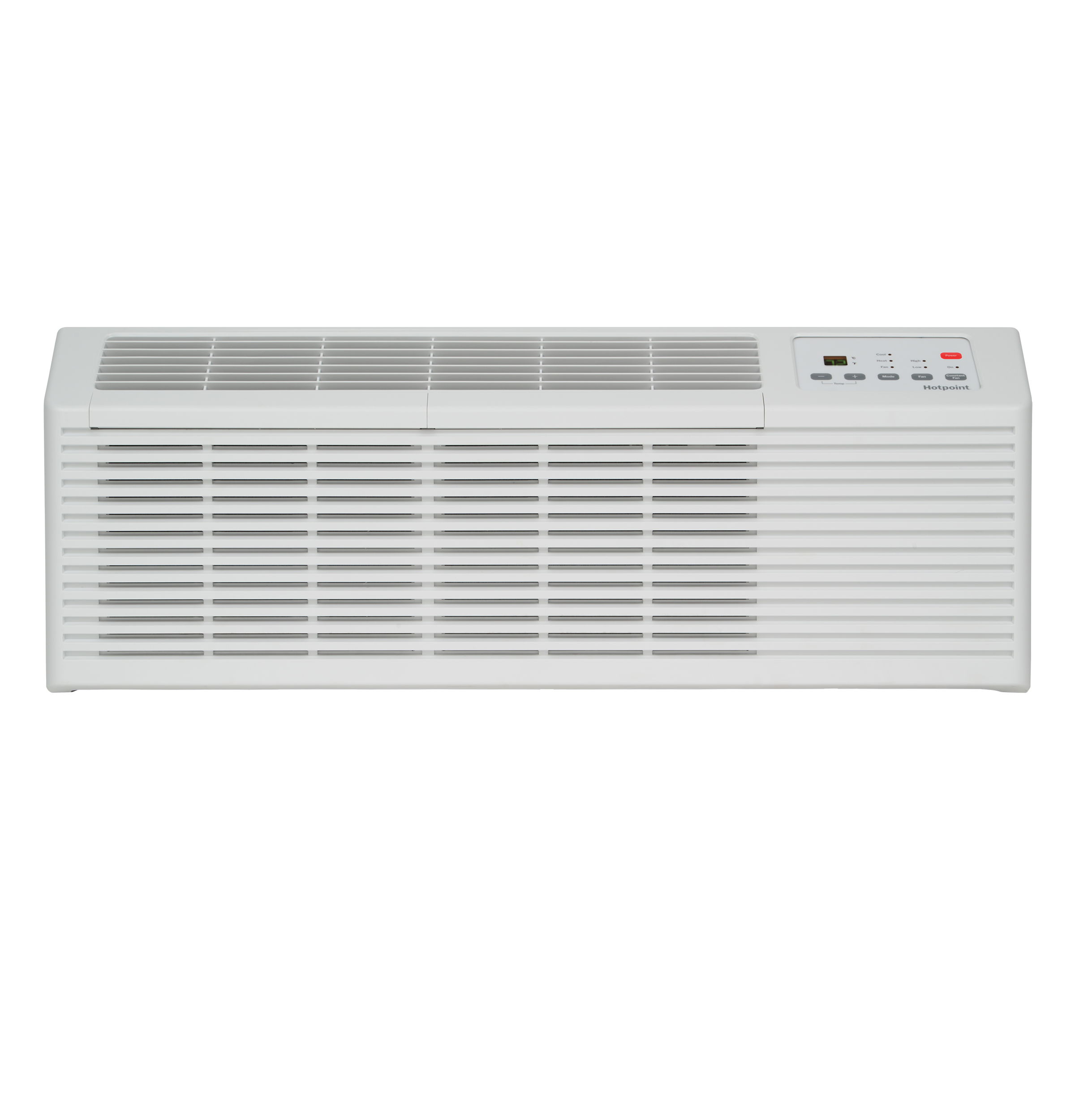

GE Hotpoint® PTAC Heat Pump with Electric Heat Backup 9,000 BTU, 230/208V, 20amp
GE Hotpoint® PTAC Heat Pump with Electric Heat Backup 9,000 BTU, 230/208V, 20amp - Image 2
GE Hotpoint® PTAC Heat Pump with Electric Heat Backup 9,000 BTU, 230/208V, 20amp - Image 3
GE Hotpoint® PTAC Heat Pump with Electric Heat Backup 9,000 BTU, 230/208V, 20amp - Image 4
GE Hotpoint® PTAC Heat Pump with Electric Heat Backup 9,000 BTU, 230/208V, 20amp - Image 5
GE · MODEL AHHS09D3XXA

GE Hotpoint® PTAC Heat Pump with Electric Heat Backup 9,000 BTU, 230/208V, 20amp

RefrigerantR32
Dimensions16 H x 42.4 W x 20.90 D in
Documents
Installation InstructionsQuick Reference GuideQuick Specs

Additional information

Dimensions 20.90 × 42.4 × 16 in
Brand

GE
Refrigerant

R32
Claims & Certifications

AHRI, CSA, CUL, UL, NRCAN
Cooling BTUH (MAX)

9400.000000
Control Type

Electronic
Fan Speed Selections

2 Cooling, 2 Fan Only, 2 Heating
Discharge Grille

2-position
Product Type

Packaged Terminal Air Conditioners (PTAC)
Refrigerant Type

R32
Manual Vent Control

Hidden
"SmartFan" Fan Cycle

Yes
Chassis Type

Slide-In
Fan Motor

1
Heat Pump - Amps

4.3/4.7
Heat Pump

Yes
Cooling - Amperes

3.9/3.7
Installation

Through-the-Wall
Unit Features

Auto Power Recovery, Automatic Emergency Heat, Automatic Indoor Frost Control, Freeze Sentinel, Heat Pump with Resistance Heat Backup, Power Cord (LCDI) included, Remote Thermostat Compatibility (Accessory Kit Required)
Cooling EER (BTUH / Watt)

11.3/11.4
Cooling - Watts

830/805
Heating - Reverse Cycle - BTUH

8400/8100
Temperature Range

62 – 80 F
Heat - Cool

Yes
Auto Power Recovery

Yes
Voltage (MIN)

208
Rotary Compressor

Yes
Heat Pump - Watts

745/715
Heating - Reverse Cycle - COP

3.3/3.3
Outdoor Vent / Exhaust

Yes
Cooling BTUH (MIN)

9200
Voltage (MAX)

230.000000
Color Appearance

White
Venting Features

Concealed Manual Vent Control
Heating System

Heat Pump with Resistance Backup

Description

Features

2 Fan Speeds

4 Temperature-limiting Options

Auto Dimming Display

Slinger Ring Condensate Removal

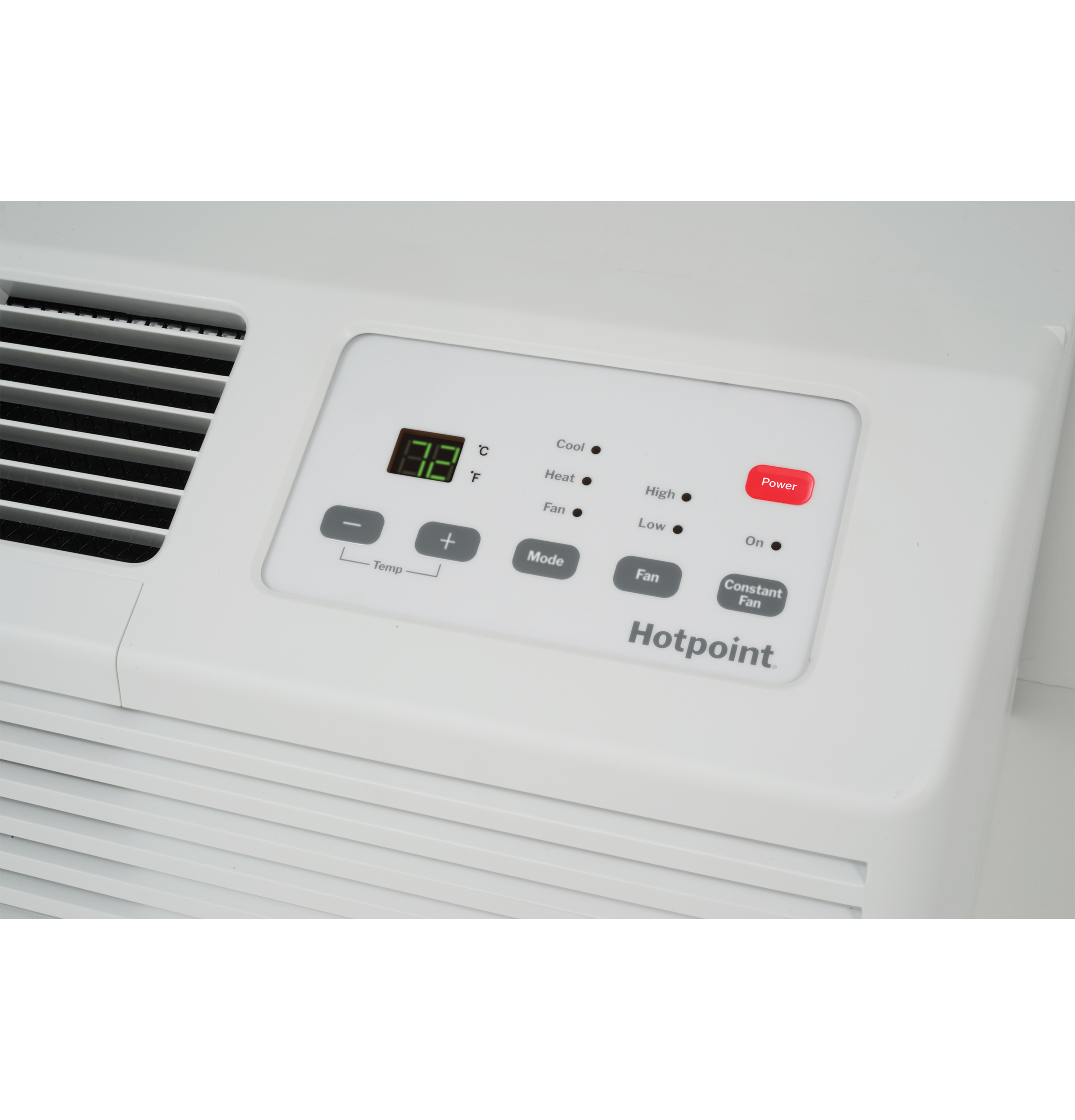

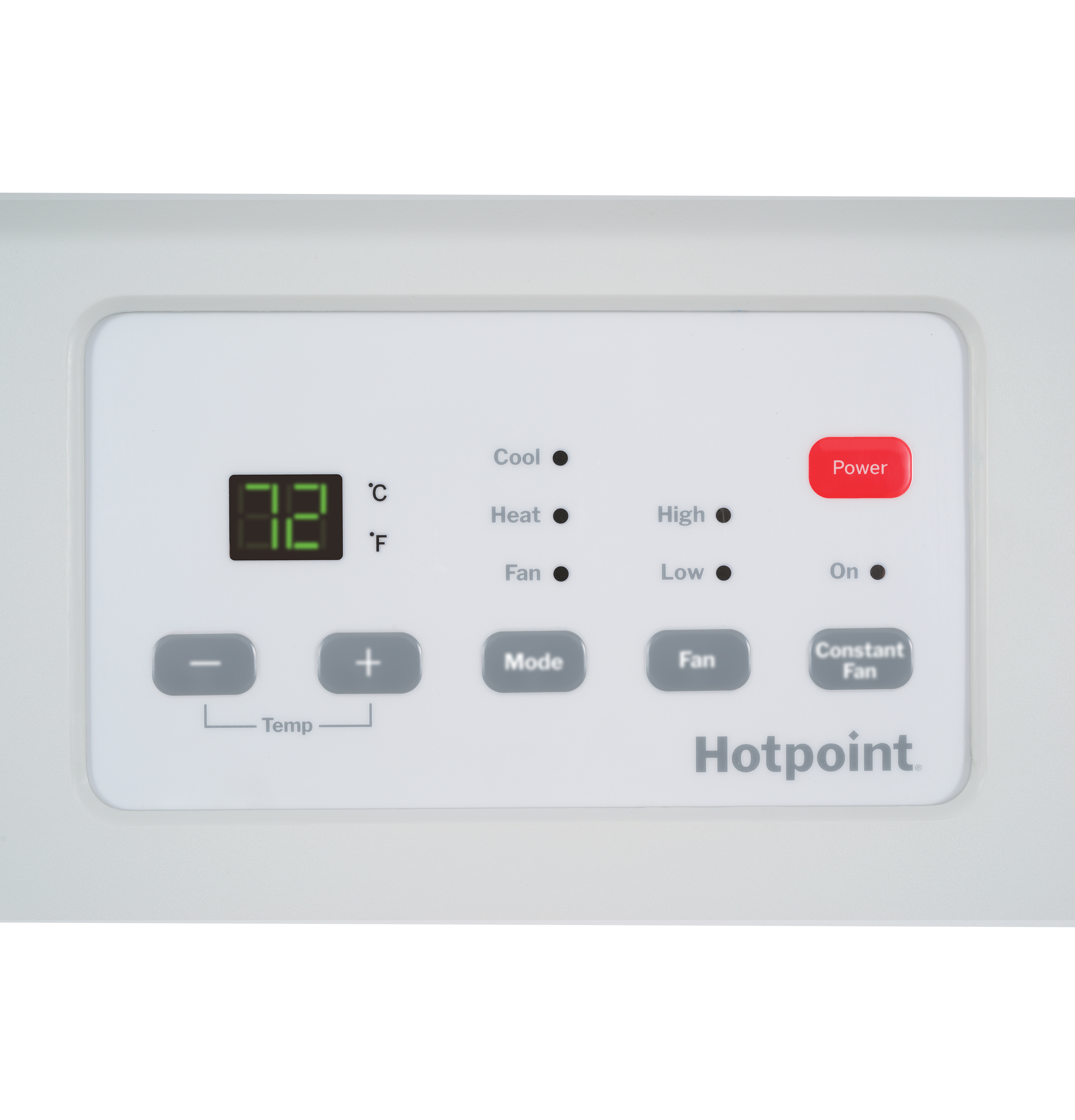

Coverless Control Panel

Automatic Emergency Heat

Freeze/frost & Overheat Protection

Auto Power Recovery

Self-diagnostics

Constant Fan Button

Warranty

Labor Warranty: Limited 1-year entire appliance, Limited 5-year sealed system
Parts Warranty: Limited 2-year entire appliance
