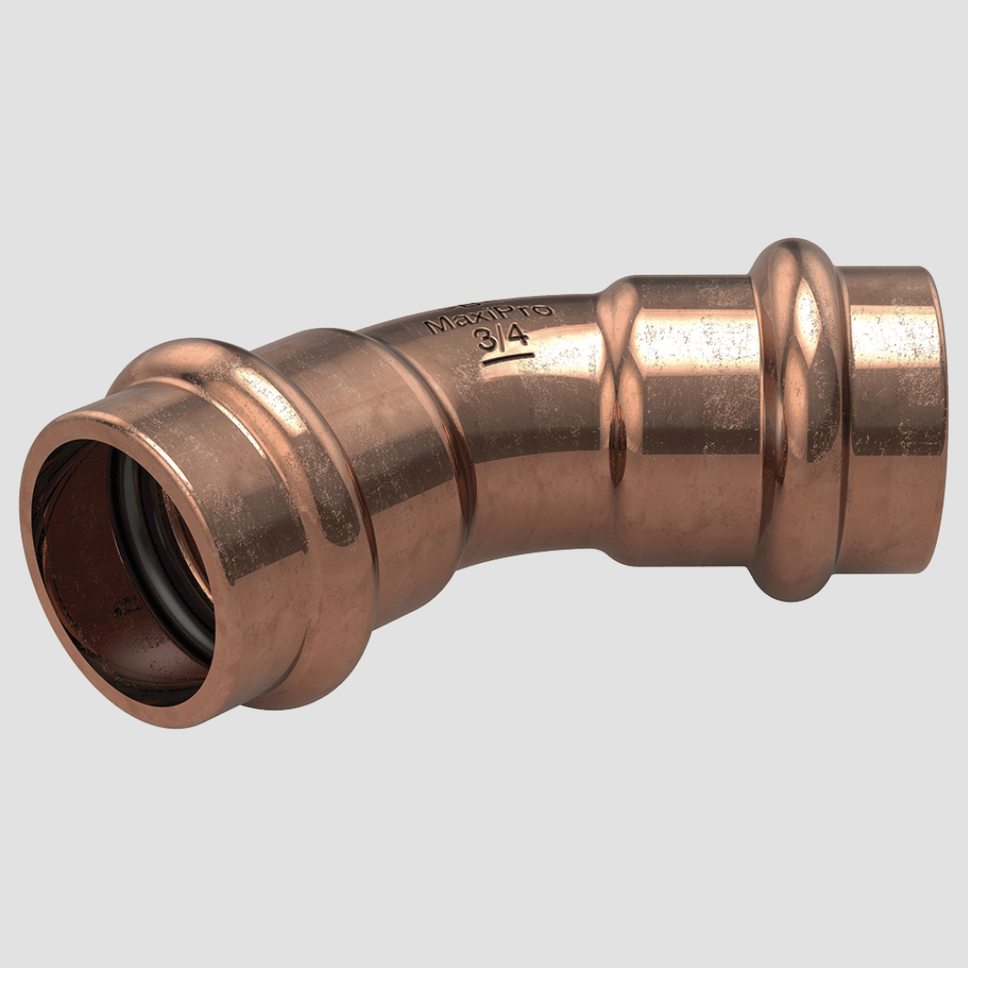

Maxipro 3/4" 45° Copper Press Fitting (45 Degree Bend)
>B< MAXIPRO · MODEL MPA50410060001

Maxipro 3/4″ 45° Copper Press Fitting (45 Degree Bend)

Additional information

Weight 0.50 lbs
Dimensions 0.00 × 0.00 × 0.00 in
Brand

>B< MaxiPro

Description

>B< Maxipro 3/4" 45 Degree Bend

The MaxiPro 3/4 inch 45 degree bend is a copper press fitting designed for refrigeration and air conditioning piping systems. It uses a 3-point press connection system that eliminates the need for soldering or brazing, providing a fast, flame-free installation method.

Key Features

  • 3-point press design with HNBR O-ring creates a secure, permanent joint without flame
  • Made from refrigeration-grade seamless copper (UNS C12200, min 99.9% pure)
  • Compatible with hard, half-hard, and soft copper tubes per ASTM B-280 and B-88 standards
  • Rated for maximum operating pressure up to 48 bar (700 psi) and temperatures from -40°F to 250°F
  • UL listed (UL 109) and approved for use with a wide range of refrigerants including R-410A, R-134a, R-407C, and newer low-GWP refrigerants

Technical Specifications

Specification Value
Size 3/4 inch
Material Wrot Copper (UNS C12200)
Connection Type Press x Press (3-point)
Application Air conditioning and refrigeration systems

Ideal For

  • Residential and light commercial air conditioning line set installation
  • Refrigeration system service and repair work
  • Heat pump refrigerant-side piping
  • Projects requiring flame-free installation in occupied buildings or fire-restricted areas
