GE® Built In Air Conditioner
Additional information
| Dimensions | 19 × 24.0625 × 14.5625 in |
|---|---|
| Brand | GE |
| Refrigerant | R32 |
| Claims & Certifications | ADA Compliant, AHAM, CUL, UL |
| Louver Style | 6-Way |
| Power Cord Length | 6 ft |
| Product Type | Built-In |
| Annual Operating Cost | 125 |
| Hertz | 60 |
| Volts/Hertz | 115V; 60Hz |
| Depth to Louvers | 20.625 |
| Chassis Type | Fixed |
| Cutout Depth (in) | 16.375 |
| Filter Type | Easy Access, Permanent Mesh, Rigid, Tilt-Out, Washable |
| Remote Control | Yes |
| Cooling - Watts | 1230 |
| Cooling EER (BTUH / Watt) | 10.5 |
| Cooling - Rated Cooling Amps AHAM | 10.9 |
| Air Flow Volume CFM High/Medium/Low | 286/258/235 |
| Cord Length | 48" |
| EER | 9.5 |
| Electrical Consumpton Standby | 6 ( kWh/year) |
| Area to Cool | 450-550 |
| Rotary Compressor | Yes |
| LCDI / AFCI power cord | Yes |
| Wall Case | RAB46/47/48/24 Required At Additional Cost |
| Electrical Requirements | 115V |
| Digital Time Temp Display | Yes |
| CEER | 9.5 |
| Room Air Conditioner Features | Auto Fan, Batteries Included, Dehumidify Function, Energy Saver, Filter Indicator, Infrared Remote Control, On/Off Timer, Sleep Mode |
| Cutout Height (in) | 15.625 |
| Color Appearance | White |
| Cooling BTUH (MAX) | 12000.000000 |
| Fan Speed Selections | 3 Cooling, 3 Fan Only |
| Optional Grill | RAG13/RAG13A/RAG14E |
| Refrigerant Type | R32 |
| Vent/Air Exchange Exhaust | Top |
| Quiet Package | 59 dBA |
| Plug Type | A / 5-15P |
| Watts | 1230 |
| Cutout Width (in) | 26 |
| Thermostat Type | Thermistor |
| Dehumidification (pts./hr.) | 3.6 |
Description
Features
True Universal Fit

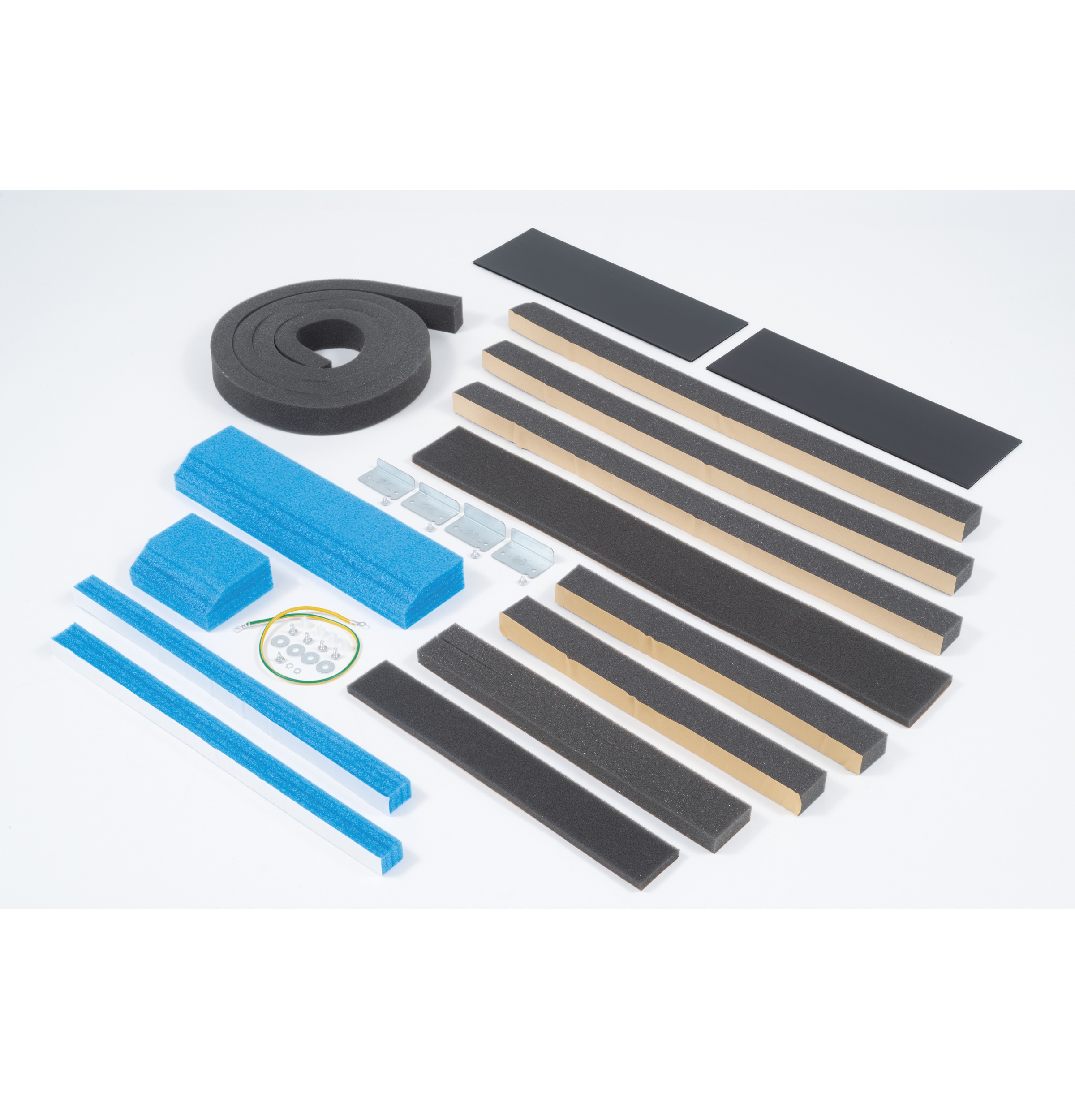

Simple slide-in installation is built in for a precise fit into a variety of different wall sleeves. Quickly fit and retrofit with confidence. Trim kit and installation kit included
Sleek Appearance
Streamlined design and bright white color will complement every room—cooling or heating your home in style
Large Lcd Display
Intuitive & easy-to-read LCD display controls room air comfort at a single touch
Eco Mode
Innovative mode where the fan cycles off during cooling intervals, creating energy savings while keeping the room comfortable
Dry Mode
Designed for humid environments, it helps provide a dryer & more comfortable atmosphere with room-air dehumidification
6-way Directional Airflow
Direct where the air flows with up to 6 directional vents—cooling and/or heating the areas of the room that need it the most
Washable Filter
Easy to remove and rinse clean, the filter helps remove dust and other particles from transmitting in the air—providing a cleaner environment
Auto Mode
Automatically select heating or cooling mode and fan speed to maintain the current temperature setpoint. It monitors the room temperature for optimal comfort
Remote Control Included
Slim, intuitive and easy to use, the remote control enables adjusting temperatures and settings conveniently from anywhere in the room

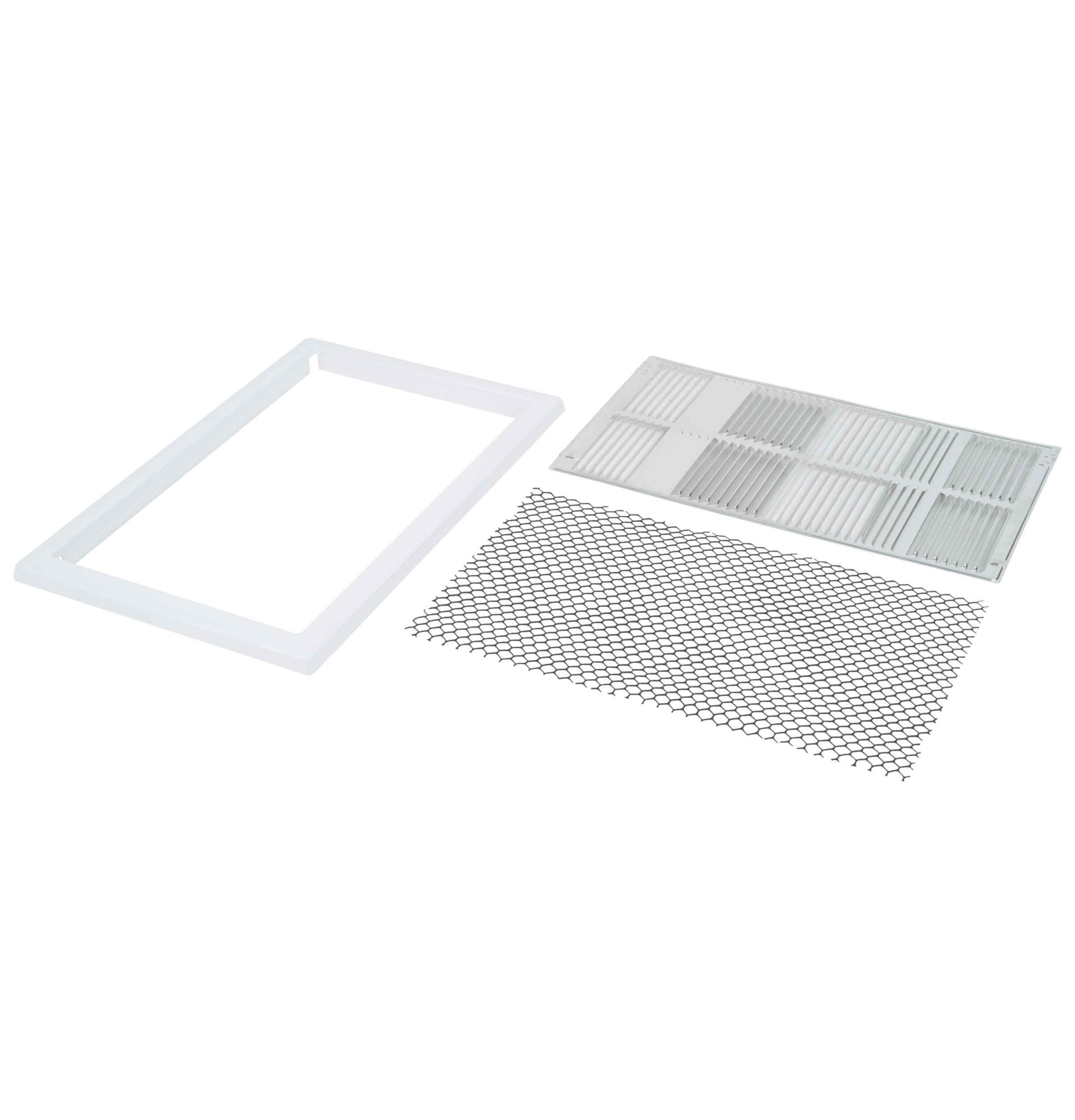

Universal Trim Kit
Designed for a custom appearance and easy installation, the trim kit provides a seamless appearance to the built-in wall sleeve
Sleep Mode
Efficient setting to adjust temperature during sleep times for up to 7 hours, creating more energy savings
2 Year Warranty
GE Appliances cares about its products, offering replacement of any part of the air conditioner which fails due to defect in materials or workmanship up to 2 years from the date of purchase
Warranty
Warranty Notes: See written warranty for full details
Parts Warranty: Limited 2-year entire appliance
Labor Warranty: Limited 1-year entire appliance, Limited 5-year sealed system
