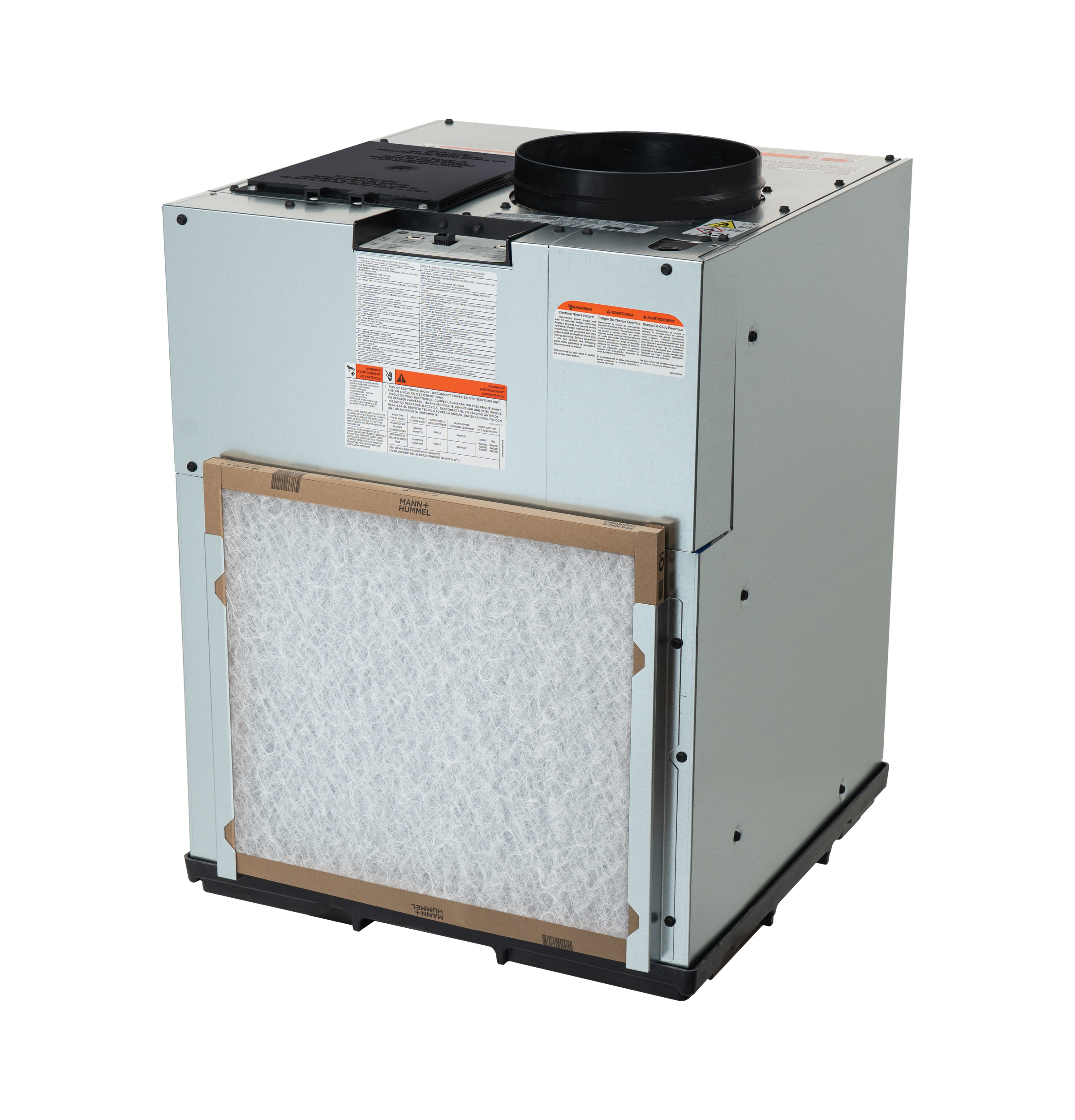

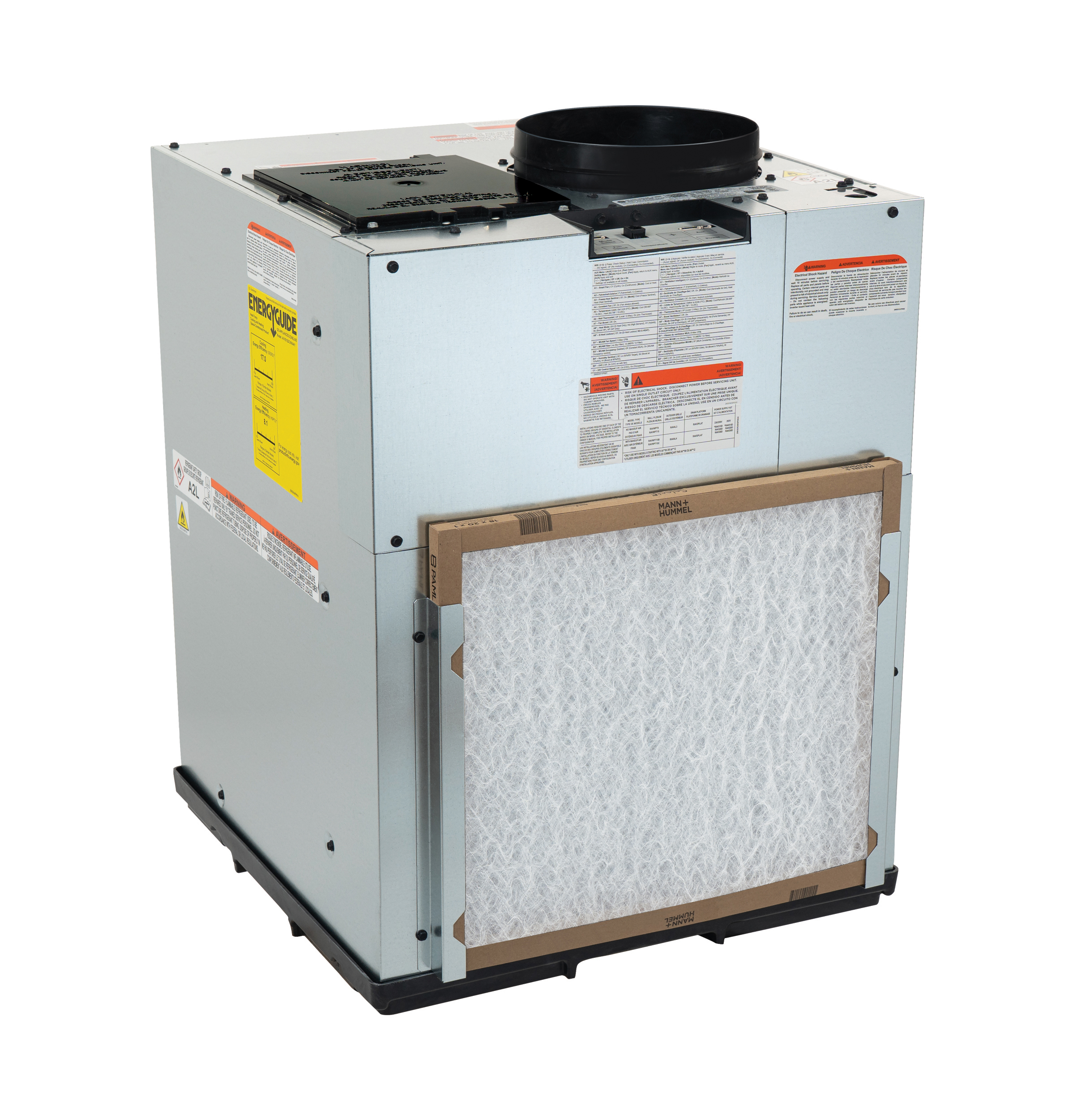

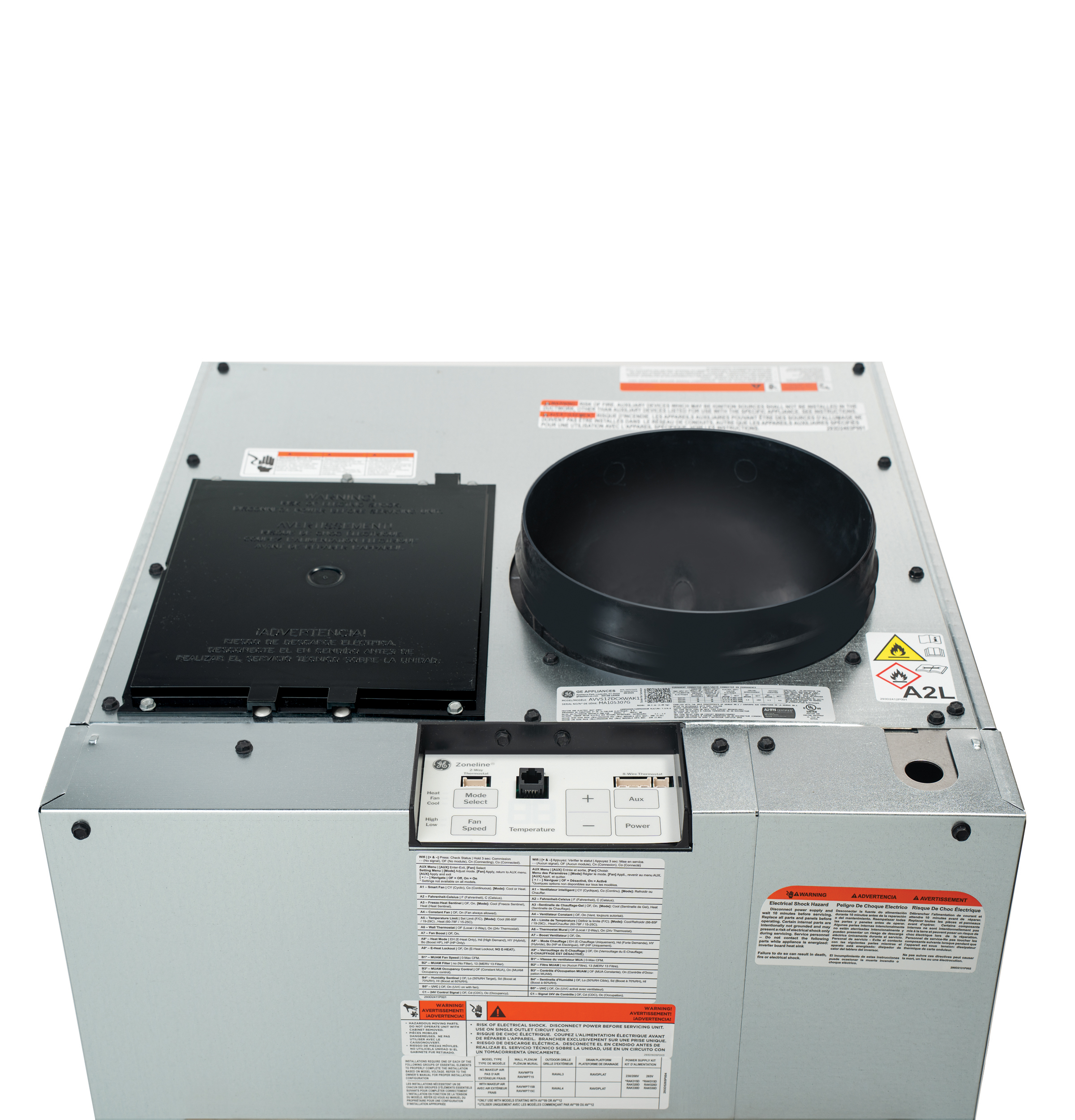

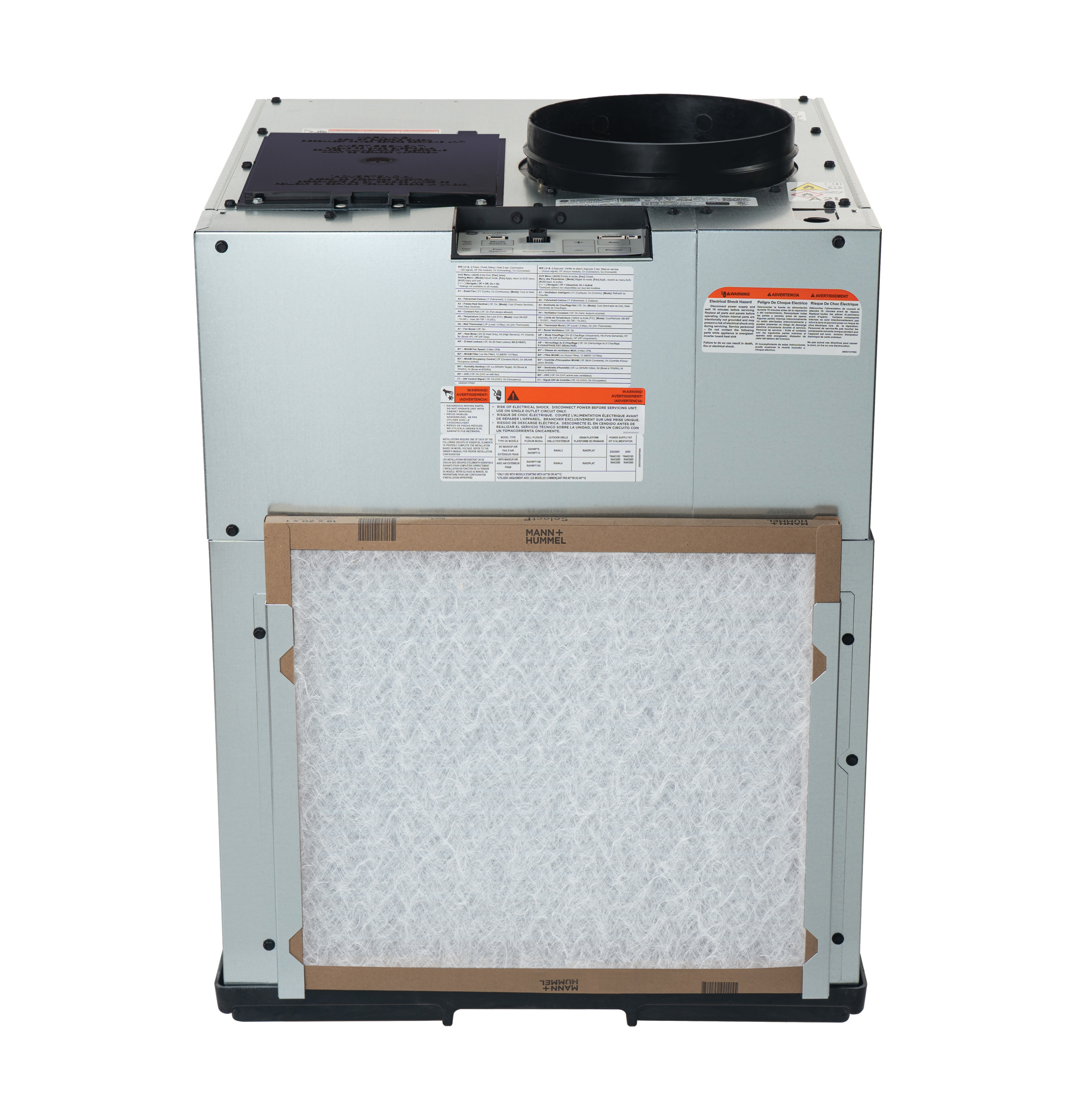

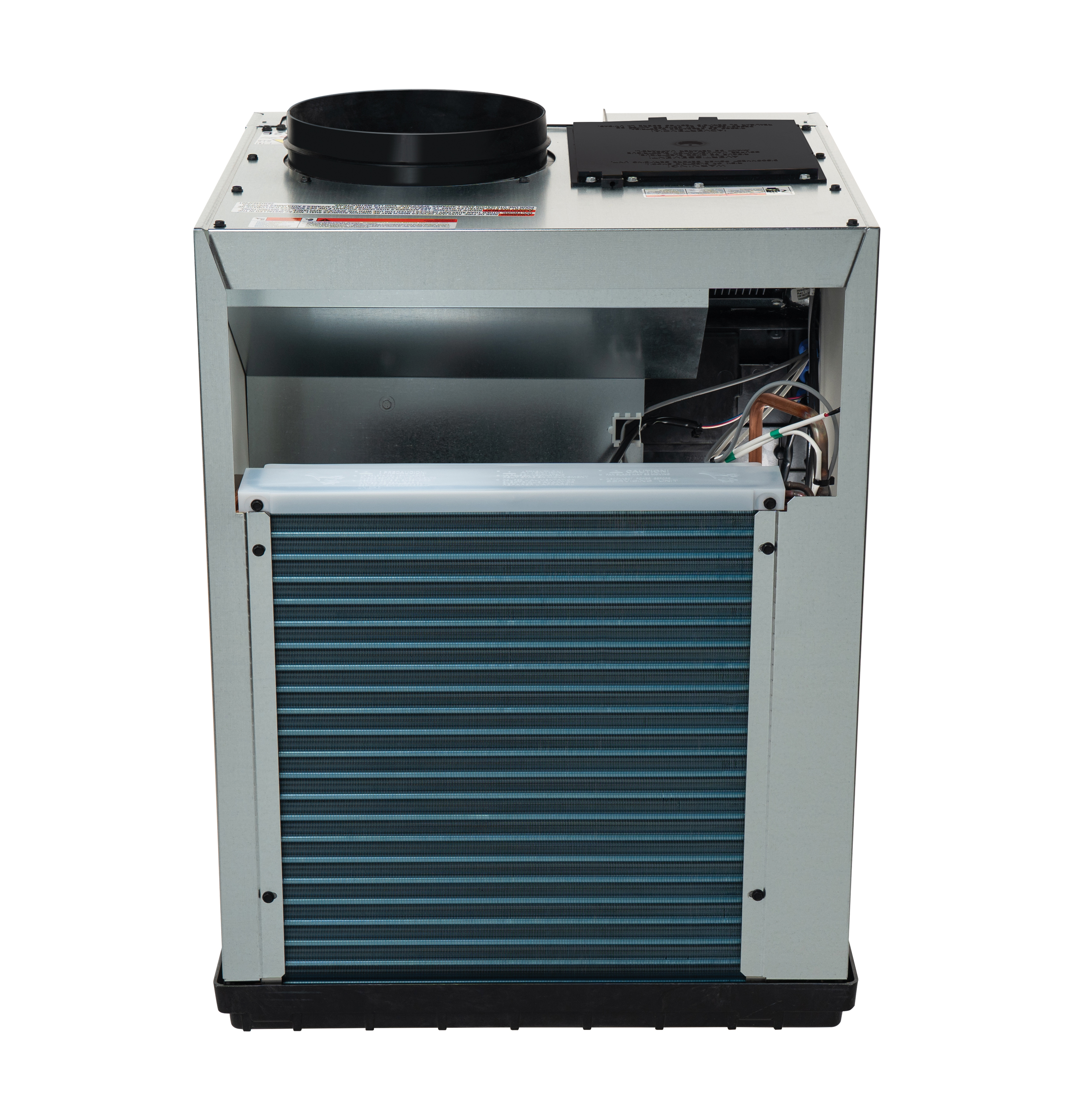

GE Vertical Zoneline V11 Inverter Heat Pump 208/230V Corrosion WiFi R454B
Additional information
| Brand | GE |
|---|---|
| SEER2 | 17 |
| Refrigerant | R454B |
| Claims & Certifications | California Prop 65, UL, AHRI, CUL, NRCAN |
| Zoneline Features | Corrosion Protection, Fast-Connect Plumbing, Insta – Platform™, Onboard Diagnostics, Quick-Install Plenum, Reverse Cycle Defrost, Saves 60% on Install Time, Self-Contained Drainage System, SmartHQ™ Wifi Ready (Requires Subscription), Ultra-Quiet, Zoneline with Perfect Control Technology |
| SEER2 | 17 |
| Control Type | Tactile touch pad with LED Display |
| Heat Pump with Resistance Heat Backup | Yes |
| Refrigerant Charge (oz.) | 38.5 |
| COP2 at 17F nominal / max | 2.2 |
| Sensible Heat Ratio | 76% ( at 95F Nominal Cool High Fan) |
| Product Type | Vertical Air Conditioners |
| Refrigerant Type | R454B |
| Heating BTU HP @ 47F | 11200 |
| Heating BTU at 17F nominal | 6300 |
| Heating BTU at 17F max | 9100 |
| HSPF2 Rating | 8.1 |
| Makeup Air | No |
| Heat Pump | Yes |
| Volts/Amps | 230 / 208V |
| CFM @ 0.3 (high fan) Nominal Cooling | 420 |
| Accessories Required for Installation | Access panel / Return Air Grille, Insta-Platform™, Outdoor Grille, Power Connection, Thermostat, Wall Plenum |
| Cooling - Amperes | 4.8 |
| Cooling BTUH (95F) | 12500 |
| Heating BTU Range @ 47F | 4500 – 13000 |
| COP2 @ 47F | 3.5 |
| Cooling - Watts | 1050 |
| Corrosion Treated | Yes |
| Dehumidification (pts./hr.) | 2.8 Nominal Cooling High Fan |
| Cooling BTUH (MAX - 115F) | 11200 |
| CFM @ 0.1 ESP Dry | 380 (low fan), 465 (high fan) |
| Cooling BTUH Range (@95F Outdoor) | 5200 – 16,200 |
| Color Appearance | Gray |
| EER2 @ 95F (12,000 BTU) | 12 |
Description
Features
Designed & Assembled In America
Date of Manufacture – 2025 or later
R454b Refrigerant
Most environmentally friendly refrigerant on the market
Inverter Technology
Variable speed operation provides an advantage with shorter recovery time, improved efficiency, sound quality and dehumidification
Reverse Cycle Defrost
Advanced defrost capability allows for extended heat pump down to 0°F
Quick Installation
Complete installation for the interior makes installation 60% faster!
Insta-platform
Eliminates the need for on-site customized platform construction saving time and money
Self-contained Drainage System
Easy installation allows for simple chassis removal while leaving plumbing completely intact
Self-aligning Lock-in-place System
Insta-platform and VTAC are self-aligning with a lock-in-place system ensuring the unit is engaged with the plenum gasket
Ultra-quit
Delivers quiet cooling power with smooth sound for a good night's sleep
Corrosion Protection
Exclusive rust-proof base pan and bulkhead, double painted compressor, stainless steel end brackets, and painted motor surfaces provide another level of corrosion protection
On-board Diagnostics
Electronic controls give clear and fast diagnostic data and fault codes, for fast and easy resolution
Smarthq™ Wifi Capability
On-board Wifi SmartHQ™ Management gives property managers the ability to monitor multiple units remotely, enhancing guest experience
Warranty
Warranty Notes: See written warranty for full details
Labor Warranty: Limited 1-year entire appliance
Parts Warranty: Limited 2-year entire appliance
