GE Zoneline® Heat Pump, Single Package Vertical Air Conditioner, 230-208 Volt
Additional information
| Brand | GE |
|---|---|
| SEER2 | 16 |
| Refrigerant | R454B |
| Claims & Certifications | California Prop 65, UL, AHRI 210 / 240, CUL, NRCAN |

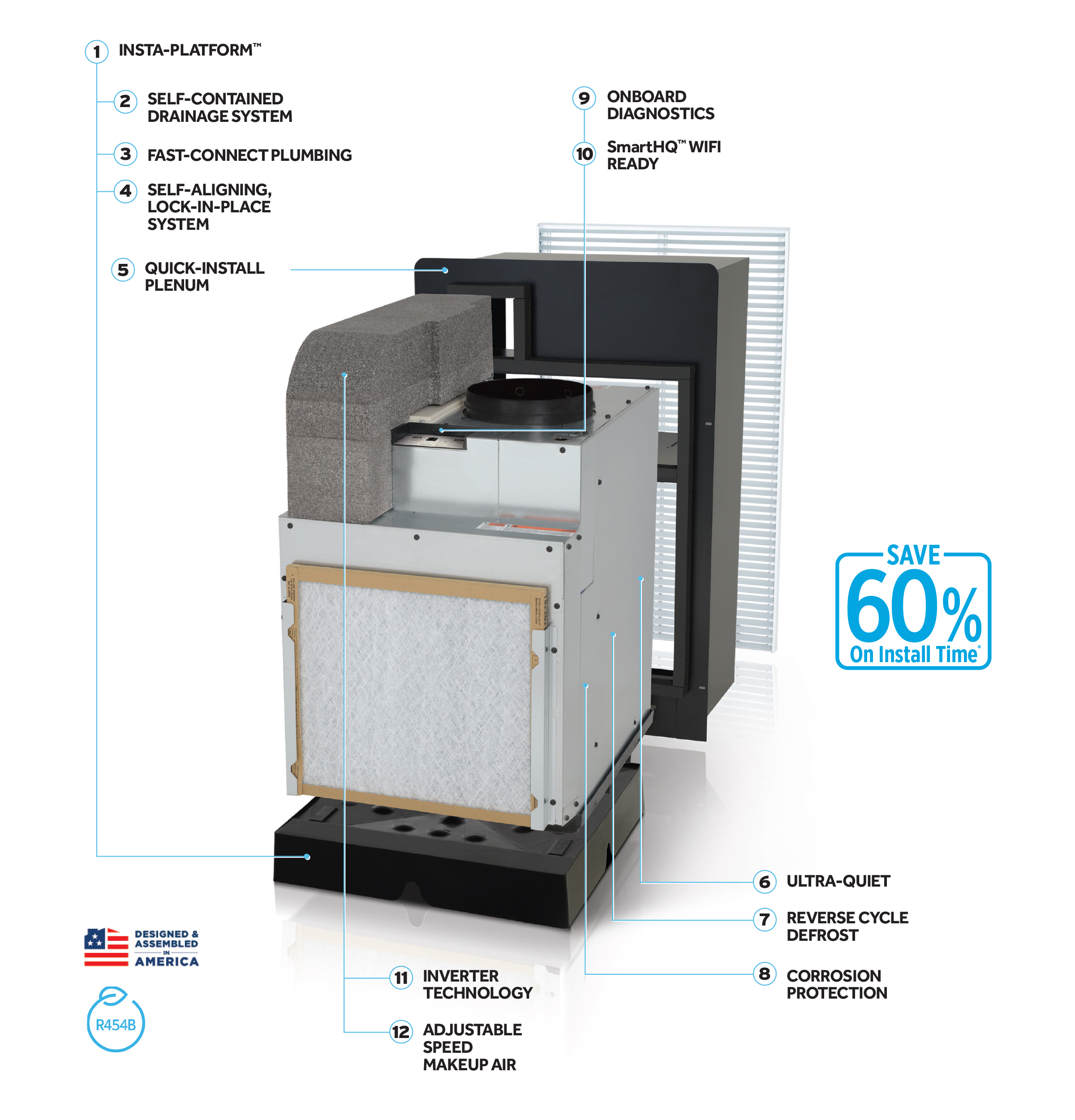

| Zoneline Features | Adjustable Makeup Air, Corrosion Protection, Fast-Connect Plumbing, Insta – Platform™, Inverter Technology, Onboard Diagnostics, Quick-Install Plenum, Reverse Cycle Defrost, Saves 60% on Install Time, Self-Aligning, Lock-In-Place System, Self-Contained Drainage System, SmartHQ™ Wifi Ready (Requires Subscription), Ultra-Quiet |
| SEER2 | 16 |
| Sensible Heat Ratio | 0.7 |
| Refrigerant Type | R454B |
| Rated Heat Pump BTU | 21500 |
| Heat Pump - Amps | 4.4 |
| HSPF2 Rating | 7.7 |
| Cooling BTU (230 / 208V) | 22400 |
| Cooling BTUH (MAX - 75F) | 27800 |
| Cooling - Amperes | 10.9 |
| Heat Pump COP2@17F (Nominal/Max) | 2 (230V Performance Data Listed) |
| Heating BTU Range @ 47F | 5,000-23,000 |
| COP2 @ 47F | 2.8 |
| Cooling - Watts | 2430 |
| EER | 8.9 |
| Makeup Air CFM | 30-70 (no filter) 20-50 (with MERV13 filter kit) |
| Voltage (MIN) | 208 |
| Cooling BTUH (MAX - 115F) | 20200 |
| Heat Pump - Watts | 925 |
| Heating BTU @17F (Nominal/Max) | 17000 |
| Cooling BTUH Range (@95F Outdoor) | 5000 – 24,000 |
| Voltage (MAX) | 230.000000 |
Description
Features
Designed & Assembled In America
Date of Manufacture – 2025 or later
R454b Refrigerant
Most environmentally friendly refrigerant on the market
Inverter Technology
Variable speed operation provides an advantage with shorter recovery time, improved efficiency, sound quality and dehumidification
Reverse Cycle Defrost
Advanced defrost capability allows for extended heat pump down to 0°F
Quick Installation
Complete installation for the interior makes installation 60% faster!
Insta-platform
Eliminates the need for on-site customized platform construction saving time and money
Self-contained Drainage System
Easy installation allows for simple chassis removal while leaving plumbing completely intact
Self-aligning Lock-in-place System
Insta-platform and VTAC are self-aligning with a lock-in-place system ensuring the unit is engaged with the plenum gasket
Ultra-quit
Delivers quiet cooling power with smooth sound for a good night's sleep
Corrosion Protection
Exclusive rust-proof base pan and bulkhead, double painted compressor, stainless steel end brackets, and painted motor surfaces provide another level of corrosion protection

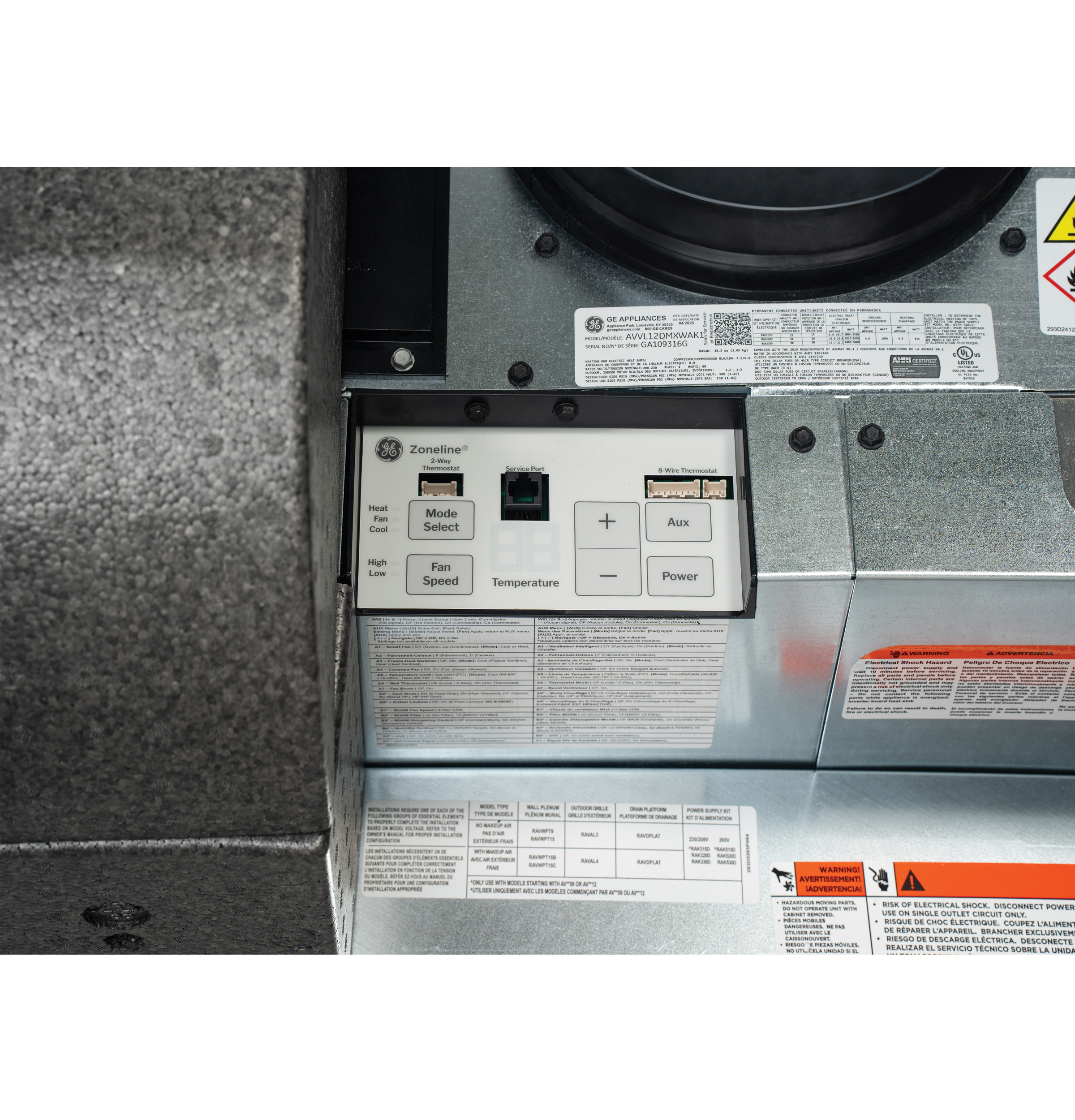

On-board Diagnostics
Electronic controls give clear and fast diagnostic data and fault codes, for fast and easy resolution
Smarthq™ Wifi Capability
On-board Wifi SmartHQ™ Management gives property managers the ability to monitor multiple units remotely, enhancing guest experience
Warranty
Warranty Notes: See written warranty for full details
Labor Warranty: Limited 1-year entire appliance, Limited 5-year sealed system
Parts Warranty: 5 year limited parts warranty
