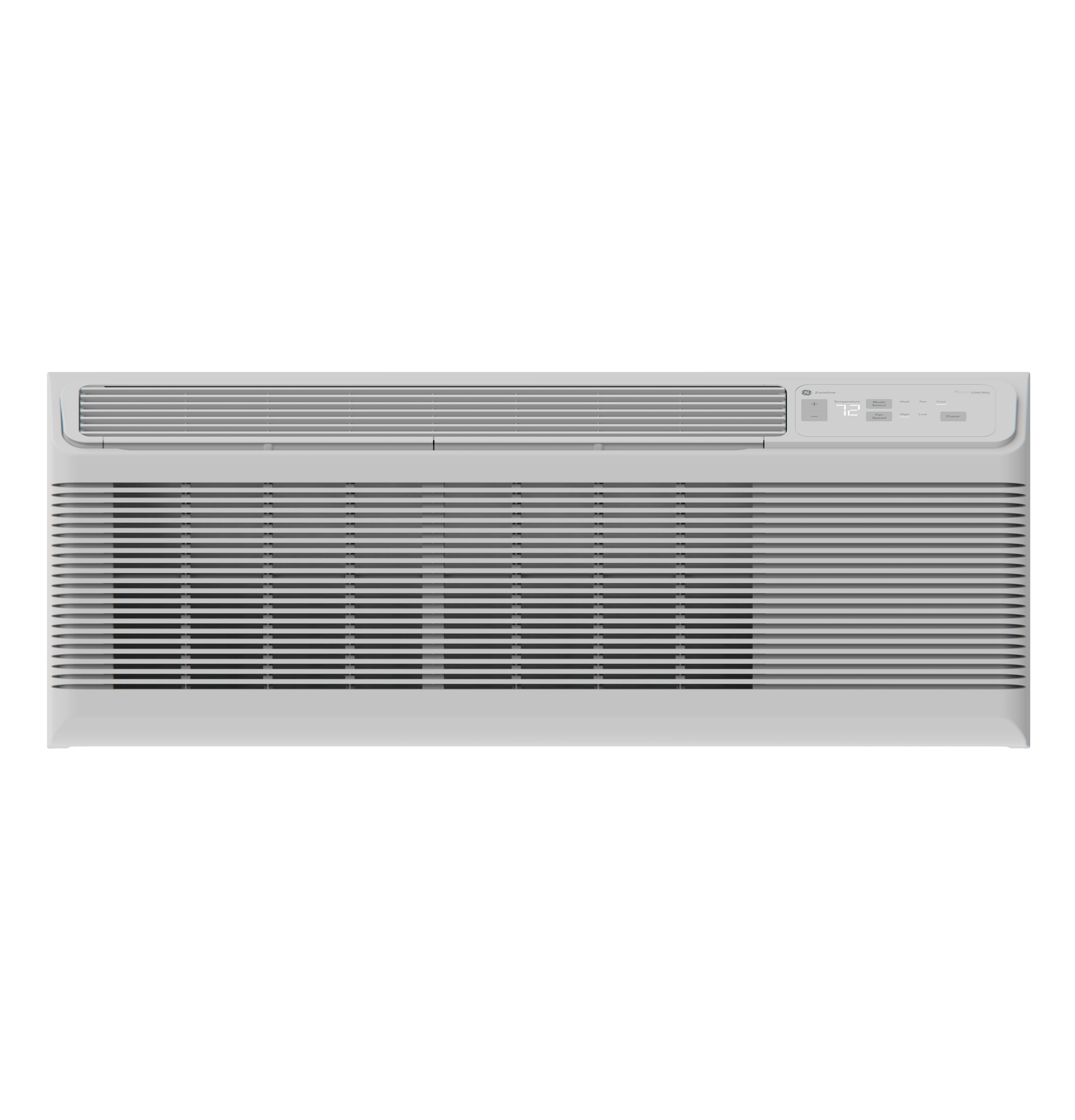

GE Zoneline® Heat Pump Unit with Variable Speed Inverter Technology and Corrosion Protection 15,000 BTU, 265 Volt
Additional information
| Dimensions | 20.8125 × 42 × 16 in |
|---|---|
| Brand | GE |
| SEER2 | 16 |
| Refrigerant | R454B |
| Claims & Certifications | California Prop 65, CUL, UL, AHRI |
| Louver Style | Reversible |
| Refrigerant Charge (oz.) | 29 |
| Sensible Heat Ratio | 0.75 |
| Power Factor | 95 |
| CFM Indoor Fan Low | 250 |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Chassis Type | Slide-In |
| Temperature Limiting | Electronic 24-Step |
| HSPF2 Rating | 7 |
| Makeup Air | Yes |
| CFM Indoor Fan High | 525 |
| Cool BTUH (265V) | 14300 |
| Accessories Required for Installation | Outdoor Grille, RAB42 – Wall Case |
| Filter Type | Rigid Frame, Slide-Out |
| WiFi Connect | Built-In |
| Fan Speed Control | Yes |
| Cooling - Amperes | 5.1 |
| Freeze Sentinel | Yes |
| Cooling - Watts | 1295 |
| Cooling EER (BTUH / Watt) | 11 |
| Temperature Range | 60 – 85 F |
| Heat Sentinel | Yes |
| Heat - Cool | Yes |
| Control Type | Standard Microcomputer, Tactile touch pad with LED Display |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Central Desk Control Compatibility | Yes |
| Heating - Electric - Heater Watts | 1165 |
| Rotary Compressor | Yes |
| Heating BTUH | 4,000 – 14,000 |
| Manual Vent Control | Hidden |
| Heating - Reverse Cycle - COP | 3 .4 |
| Venting Features | Concealed Manual Vent Control, Outdoor Vent Control – 3 Positions, Vent Air Filter |
| Heating System | E Heat/High Demand/Hybrid/Boost/HP Only |
| Vent Control | 3-position |
| Heating - Electric - Heater Amps | 4.5 |
| Fan Motor | 2, EC Controlled |
| Voltage (MAX) | 265.000000 |
| Color Appearance | Grey White |
| Zoneline Features | "Smart Fan" Fan Cycle Control, Auto Power Recovery, Automatic Indoor Frost Control, Central Desk Control Compatibility, Freeze Sentinel, Heat Sentinel, Random Twist/Length Segment Tangential Blower, Remote Thermostat Compatibility, Universal Heaters |
| SEER2 | 16 |
| Cooling BTUH (MAX) | 14300.000000 |
| Fan Speed Selections | Hi/Low Cooling, Hi/Low Fan Only, Hi/Low Heating |
| Discharge Grille | 2-position |
| Refrigerant Type | R454B |
| Heat Pump | Yes |
| Corrosion Treated | Yes |
| Dehumidification (pts./hr.) | 2 |
| Vent CFM (high fan at zero ESP) | 45 |
Description
Features
Designed & Assembled In America
Date of Manufacture – 2025 or later
Eco-friendly Build
Zoneline® Perfect Control units use the most environmentally friendly refrigerants currently offered in PTAC's, helping commercial building meet LEED standards and reduce their environmental footprint
Inverter Technology
Variable speed operation provides an advantage with shorter recovery time, improved efficiency, sound quality and dehumidification
Efficient Cold Weather Heat Pump
Advanced defrost capability allows for extended heat pump down to 0°F
New Upgraded Appearance

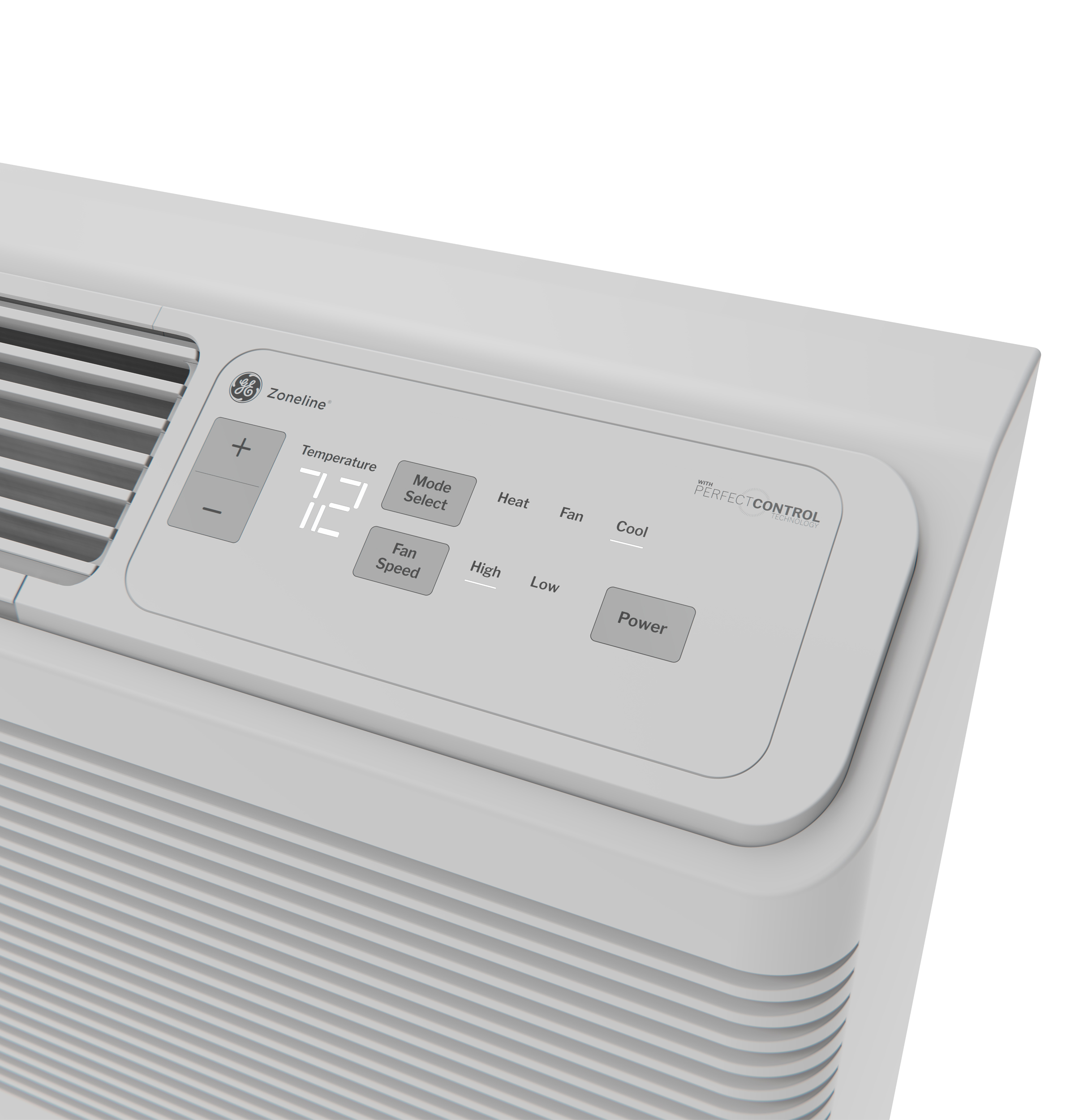

New grey white chassis color will compliment any installation and room décor. Easy-to-read interface makes navigation simple.
Whisper Quiet Operation
Large cross-flow blower, a variable speed compressor and two EC motors work together to minimize noise and maximize comfort.
Industry Leading Performance
Perfect Control technology senses temperature and humidity onboard the unit and occupancy via optional wall thermostats. Proprietary heat load algorithms sense room size to automatically adjust output and target comfortable humidity levels.
Best-in-class Reliability
With over 1 million units installed, Zoneline® PTACs offer unrivaled reliability backed by a dedicated service network and field team that helps you stay up and running
Unmatched Durability
All Zoneline® units are made of the highest quality material and tested in extreme environments to ensure they operate at peak performance, season after season
Warranty
Warranty Notes: See written warranty for full details
Parts Warranty: Limited 2-year entire appliance
Labor Warranty: Limited 1-year entire appliance, Limited 5-year sealed system
