GE Zoneline® Heat Pump Unit with Variable Speed Inverter Technology and Makeup Air 15,000 BTU, 265 Volt
Additional information
| Dimensions | 20.8125 × 42 × 16 in |
|---|---|
| Brand | GE |
| SEER2 | 16 |
| Refrigerant | R454B |
| Claims & Certifications | California Prop 65, CUL, UL, AHRI |
| Zoneline Features | "Smart Fan" Fan Cycle Control, Auto Power Recovery, Automatic Indoor Frost Control, Central Desk Control Compatibility, Freeze Sentinel, Heat Sentinel, Random Twist/Length Segment Tangential Blower, Remote Thermostat Compatibility, Universal Heaters |
| SEER2 | 16 |
| Cooling BTUH (MAX) | 14300.000000 |
| Louver Style | Reversible |
| Refrigerant Charge (oz.) | 29 |

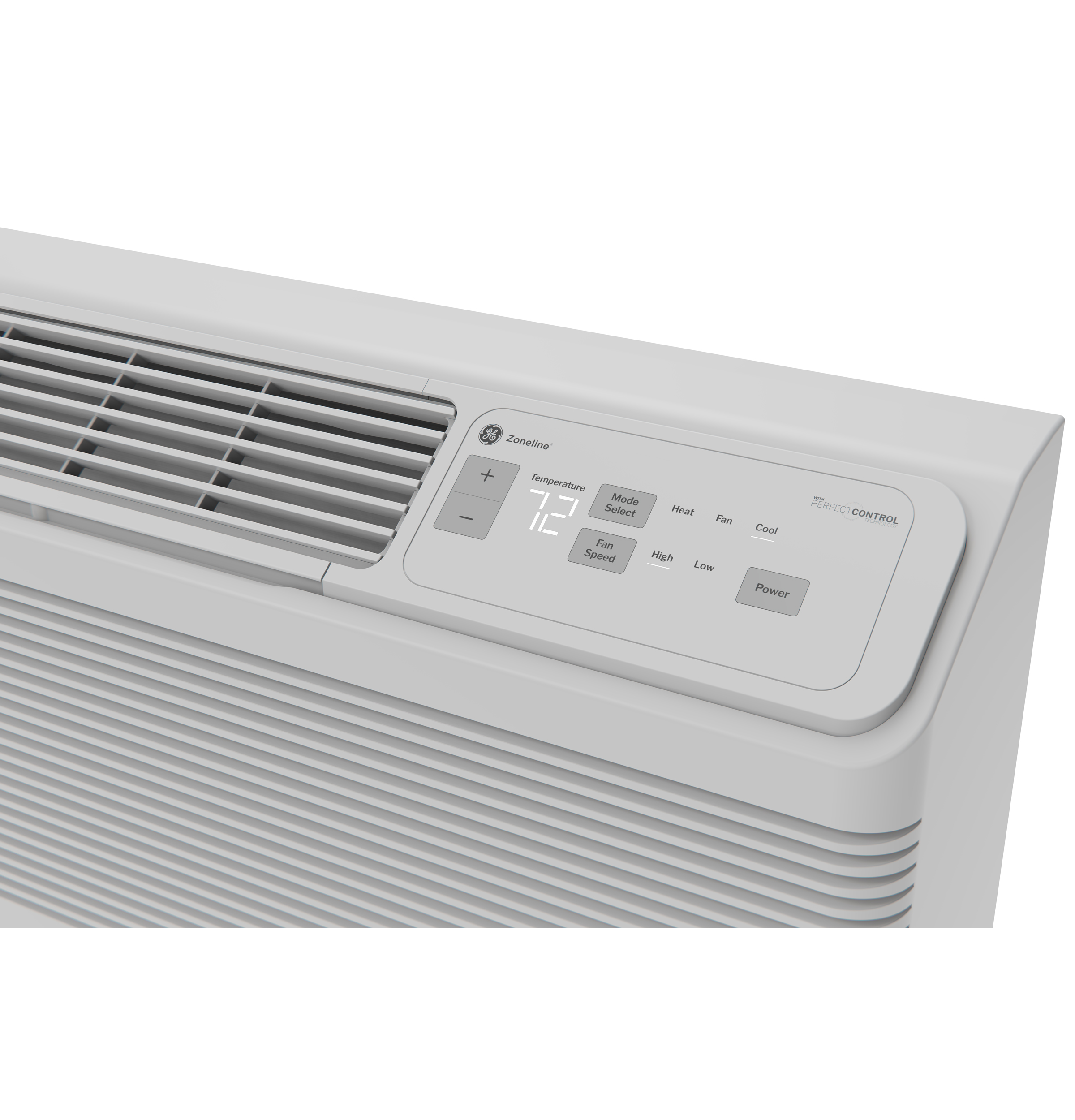

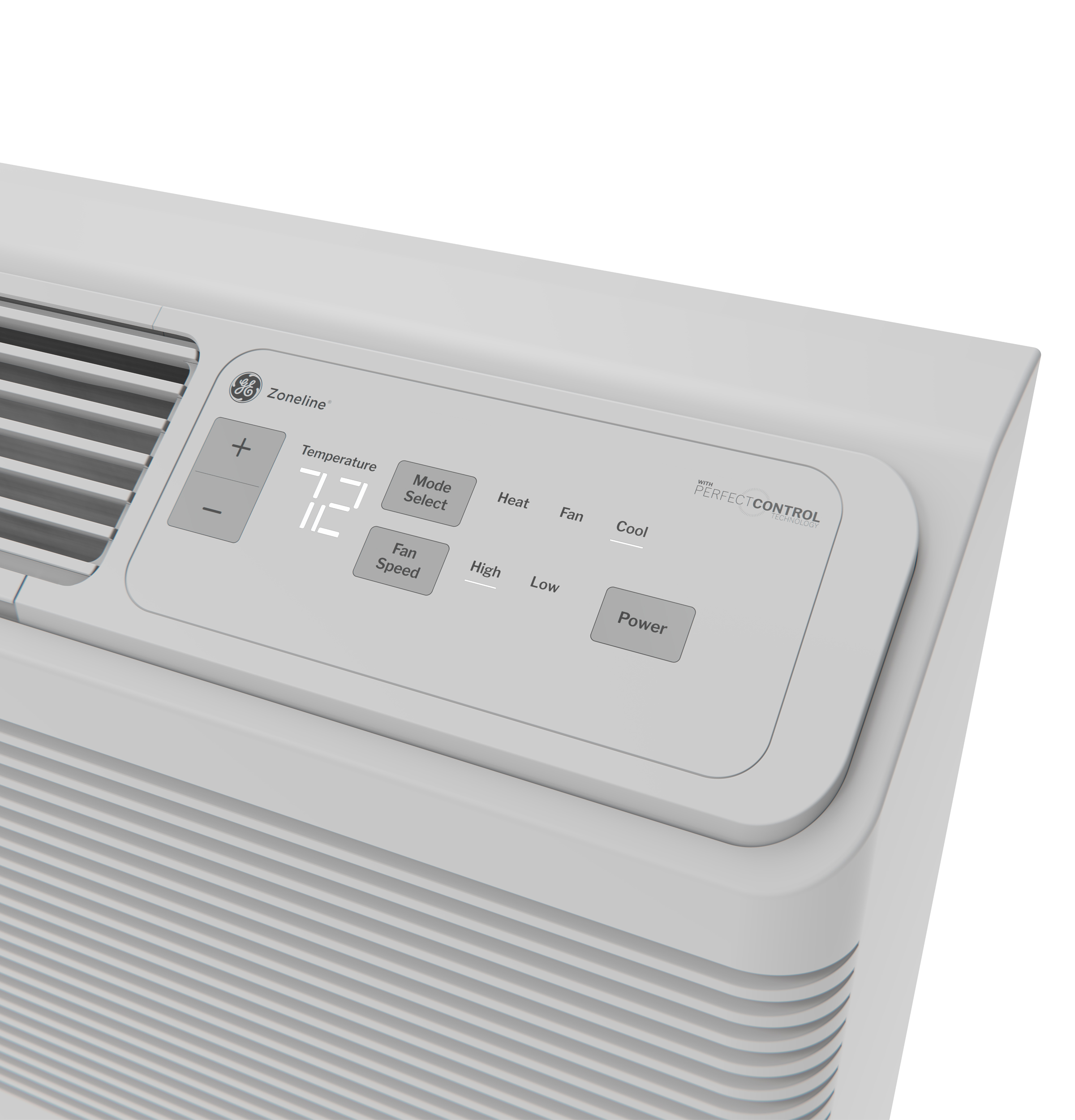

| Control Type | Standard Microcomputer, Tactile touch pad with LED Display |
| Discharge Grille | 2-position |
| Fan Speed Selections | Hi/Low Cooling, Hi/Low Fan Only, Hi/Low Heating |
| Sensible Heat Ratio | 0.75 |
| Power Factor | 95 |
| CFM Indoor Fan Low | 250 |
| Refrigerant Type | R454B |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Filter Type | Rigid Frame, Slide-Out |
| Manual Vent Control | Hidden |
| Chassis Type | Slide-In |
| Fan Motor | 2, EC Controlled |
| Temperature Limiting | Electronic 24-Step |
| HSPF2 Rating | 7 |
| Makeup Air | Yes |
| Heat Sentinel | Yes |
| Heat Pump | Yes |
| CFM Indoor Fan High | 525 |
| Cool BTUH (265V) | 14300 |
| Accessories Required for Installation | Outdoor Grille, RAB42 – Wall Case |
| Cooling - Amperes | 5.1 |
| WiFi Connect | Built-In |
| Fan Speed Control | Yes |
| Cooling EER (BTUH / Watt) | 11 |
| Cooling - Watts | 1295 |
| Freeze Sentinel | Yes |
| Temperature Range | 60 – 85 F |
| Corrosion Treated | Yes |
| Heat - Cool | Yes |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Central Desk Control Compatibility | Yes |
| Dehumidification (pts./hr.) | 2 |
| Heating - Electric - Heater Watts | 1165 |
| Rotary Compressor | Yes |
| Heating BTUH | 4,000 – 14,000 |
| Heating - Reverse Cycle - COP | 3 .4 |
| Voltage (MAX) | 265.000000 |
| Color Appearance | Grey White |
| Heating System | E Heat/High Demand/Hybrid/Boost/HP Only |
| Heating - Electric - Heater Amps | 4.5 |
Description
Features
Designed & Assembled In America
Date of Manufacture – 2025 or later
Eco-friendly Build
Zoneline® Perfect Control units use the most environmentally friendly refrigerants currently offered in PTAC's, helping commercial building meet LEED standards and reduce their environmental footprint
Inverter Technology
Variable speed operation provides an advantage with shorter recovery time, improved efficiency, sound quality and dehumidification
Efficient Cold Weather Heat Pump
Advanced defrost capability allows for extended heat pump down to 0°F
New Upgraded Appearance
New grey white chassis color will compliment any installation and room décor. Easy-to-read interface makes navigation simple.
Whisper Quiet Operation
Large cross-flow blower, a variable speed compressor and two EC motors work together to minimize noise and maximize comfort.
Industry Leading Performance
Perfect Control technology senses temperature and humidity onboard the unit and occupancy via optional wall thermostats. Proprietary heat load algorithms sense room size to automatically adjust output and target comfortable humidity levels.
Best-in-class Reliability
With over 1 million units installed, Zoneline® PTACs offer unrivaled reliability backed by a dedicated service network and field team that helps you stay up and running
Unmatched Durability
All Zoneline® units are made of the highest quality material and tested in extreme environments to ensure they operate at peak performance, season after season
Adjustable Speed Makeup Air
Makeup Air with customizable variable speed fan technology prov ide the precise airflow for specific applications. For energy savings, Makeup air delivery can be cycled based on occupancy, using a compatible occupancy detecting thermostat.
Warranty
Warranty Notes: See written warranty for full details
Labor Warranty: Limited 1-year entire appliance, Limited 5-year sealed system
Parts Warranty: Limited 2-year entire appliance
